MD905v

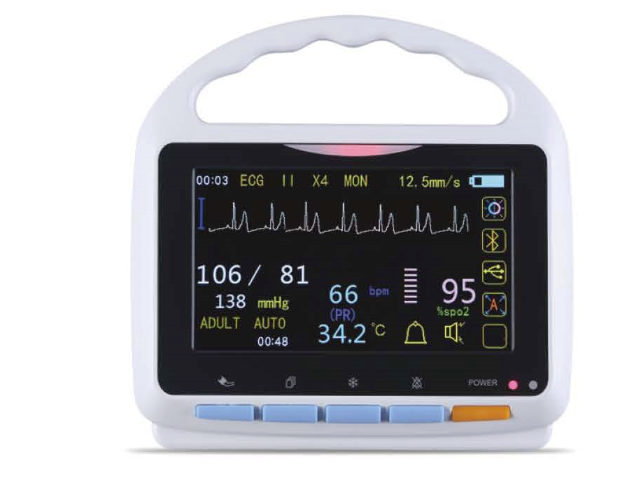

MD905 vet Touch screen patient monitor ,5.0 inch color TFT Screen,simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm

USB and Bluetooth data upload
MD905 vet Touch screen patient monitor ,5.0 inch color TFT Screen,simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm

USB and Bluetooth data upload
Read More
Touch screen 5.1 inch color TFT
Horizontal and vertical display select-able
Big font screen interface is easy to observe
Adjustable brightness
Palm multi-parameter patient monitor with 5 standard parameters: ECG. NIBP. SPO2. PR.TEMP.

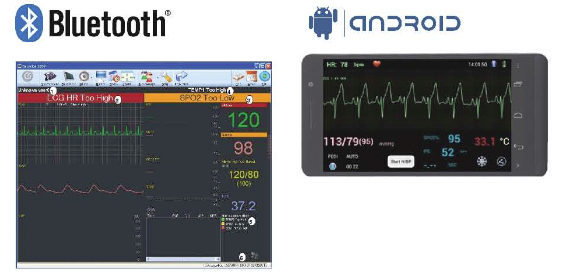

Advanced software is for data downloading and tele-monitoring
Adjustable audible and visual alarms and sensor off alarm;
Long time monitoring and sleeping monitoring;
Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
Built-in Bluetooth modem for PC & Printer connection
USB and Bluetooth data upload;
Build-in rechargeable Li-battery up to 15 hours running time support AC and DC power;

Options:
Bluetooth Thermal printer
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g

Monitoring Parameter

ECG
Input：3- lead ECG cable standard AAMI cable connector
Lead Selection：I, II, III
Gain Selection：×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05～100Hz (-3dB) filter: 0.5～40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation

Heart Rate
Measuring Range: 20 bpm～300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm

SpO2
SpO2%
Measuring Range:0%～100%
Resolution:1 %
Accuracy:±2 %(90%～99%) ±3 %(70%～89%) unspecified (0%～69%)
Pulse Rate
Measuring and Alarm Range:20～300bpm
Resolution: 1bpm
Accuracy: ±1bpm

NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg～300mmHg
Pulse Rate Range:30 bpm～250bpm
Measurement Rage:
                          Big animal 30 mmHg～255mmHg
                          Small animal 30 mmHg～160mmHg
Over-pressure Protection:
                          Big animal 300mmHg
                          Small animal 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.

Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃～50℃
Accuracy: ±0.1℃

Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours

Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity：0～55℃/10～80%RH
Storage Operation/relative humidity：–20～60℃/10～90%RH
Power Supply
AC Power Adaptor
Input: 100～240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A

Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.

Environment
Temperature
Working:0℃～45℃
Transport and Storage: -25℃～85℃
Humidity
Working:30% ～85 %
Transport and Storage: 30% ～95 % (no condensation)

Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Standard:
Paper Role
Bluetooth Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)



Product Features

    Touch screen 5.1 inch color TFT
    Horizontal and vertical display select-able
    Big font screen interface is easy to observe
    Adjustable brightness
    Palm multi-parameter patient monitor with 5 standard parameters: ECG. NIBP. SPO2. PR.TEMP.
    Advanced software is for data downloading and tele-monitoring
    Adjustable audible and visual alarms and sensor off alarm;
    Long time monitoring and sleeping monitoring;
    Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
    Built-in Bluetooth modem for PC & Printer connection
    USB and Bluetooth data upload;
    Build-in rechargeable Li-battery up to 15 hours running time support AC and DC power;

    Options:
    Bluetooth Thermal printer

Product Specifications

    Display Specification
    Measurement Display: color TFT- LCD/touch screen
    Power Supply Indicator: Dual-color LED (red/green)
    Charging indicator: A green LED
    Size: 209mm×104mm×47.5mm
    Net Weight: 655g

    Monitoring Parameter

    ECG
    Input：3- lead ECG cable standard AAMI cable connector
    Lead Selection：I, II, III
    Gain Selection：×1, ×2, ×4, ×8
    Sweep Speed: 12.5 25 and 50 mm/s
    Frequency Response: None filter: 0.05～100Hz (-3dB) filter: 0.5～40Hz (-3dB)
    Calibration Signal: 1mV square wave
    Protection: Against electrosurgical interference and defibrillation

    Heart Rate
    Measuring Range: 20 bpm～300 bpm
    Renew Time: 1 time per beat
    Accuracy: ±1 bpm
    Alarm Mode: Audible and visual alarm

    SpO2
    SpO2%
    Measuring Range:0%～100%
    Resolution:1 %
    Accuracy:±2 %(90%～99%) ±3 %(70%～89%) unspecified (0%～69%)
    Pulse Rate
    Measuring and Alarm Range:20～300bpm
    Resolution: 1bpm
    Accuracy: ±1bpm

    NIBP
    Method: Oscillometric
    Mode: Manual Auto STAT
    Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
    Measuring Period in STAT Mode: 5 min
    Cuff Pressure Range:0 mmHg～300mmHg
    Pulse Rate Range:30 bpm～250bpm
    Measurement Rage:
                              Big animal 30 mmHg～255mmHg
                              Small     animal 30 mmHg～160mmHg
    Over-pressure Protection:
                              Big animal     300mmHg
                              Small animal     220mmHg
    Pressure Resolution : 1mmHg
    The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
    The MEAN value measured using this device is equal to that measured using blood pressure measurement device.

    Temperature
    Input: Body surface thermal-sensitive resistor temperature sensor
    Measuring Range: 0℃～50℃
    Accuracy: ±0.1℃

    Storage and Review
    Maximum Data Quantity: 3888 groups
    Maximum Trend Time: Continuous 129.6 hours

    Power :
    Rechargeable battery 1700mAh~2000mAh.7.2V.
    Charge(discharge) ≧1000times.
    Charge time: 2hours
    Work Operation/relative humidity：0～55℃/10～80%RH
    Storage Operation/relative humidity：–20～60℃/10～90%RH
    Power Supply
    AC Power Adaptor
    Input: 100～240VAC 50/60Hz 0.7A
    Output: DC 5V 1.5A

    Battery
    Li-ion rechargeable battery 3.7V/7200mAH
    Operating Time: 15 hours with full battery capacity.
    (Condition: 25℃ NIBP working period is 15 minutes)
    Recharge Time: 10 hours.

    Environment
    Temperature
    Working:0℃～45℃
    Transport and Storage: -25℃～85℃
    Humidity
    Working:30% ～85 %
    Transport and Storage: 30% ～95 % (no condensation)

    Printer (optional)
    Type: Thermal micro-printer
    Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
    Interface: Bluetooth wireless interface
    Recording Types: Real-time printing and review data printing
