MD9000vet

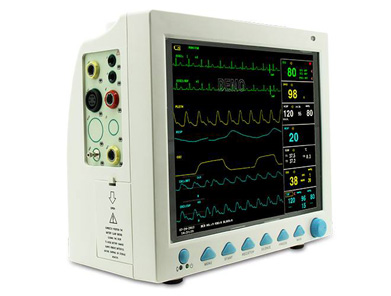

Meditech MD9000vet 12.1" color TFT patient monitor, can display 7 channels ECG by one frame.
MD9000vet  standard parameters of ECG, NIBP, RESP, digital SPO2, TEMP and PR with optional configuration IBP, ECTO2, recorder (printer), drug dose calculation and OXYCRG.

It has maximum 72 hours storage capacity and a networking ability.
Meditech MD9000vet 12.1" color TFT patient monitor, can display 7 channels ECG by one frame.
MD9000vet  standard parameters of ECG, NIBP, RESP, digital SPO2, TEMP and PR with optional configuration IBP, ECTO2, recorder (printer), drug dose calculation and OXYCRG.

It has maximum 72 hours storage capacity and a networking ability.
Read More
High resolution screen ,size 12.1” color TFT display
Professional veterinary software
Light weight compact and portable   ECG. SpO2. NIBP. RESP. 2-TEMP. PR
Built-in rechargeable lithium battery
ECG waveforms of 7-leads display on the same screen
72-hours graphic and tabular trends of all parameters
480 alarm events of all parameters recall
72 hours full-disclosure waveform review
500 NIBP measurement data can be storage and recall
Data and waveforms color be adjustable
Arrhythmia analysis and S-T segment analysis
Suitable for adult pediatric and neonatal patient




Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer

ECG
Lead Mode           5 Leads ( R, L, F, N, C or RA, LA, LL, RL, V)
Lead selection      I, II, III, avR, avL, avF, V,
Waveform             2 ch
Lead mode           3 Leads ( R, L, F or RA, LA, LL)
Lead selection      I, II, III,
Waveform             1 ch
Gain                     ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV
HR and Alarm

Range
Big Animal         30 ~ 300 bpm
Small Animal     30 ~ 350 bpm
Accuracy                           ±1% or ±1bpm, which great
Resolution                         1 bpm
Sensitivity                           > 200 uV P-P
Differential Input Impedance  > 5 MΩ
CMRR
Monitor                              > 105 dB
Operation                           > 105 dB
Diagnosis                           > 85 dB
Electrode offset potential  ±300mV
Leakage Current               < 10 uA
Baseline Recovery            < 10 s  After Defi.
ECG Signal Range            ±8 mV (Vp-p)

Bandwidth
Surgery                              1 ~ 15 Hz
Monitor                                0.5 ~ 35 Hz
Diagnostic                           0.05 ~ 100 Hz
Calibration Signal  1 mV (Vp-p),  ±5%  Accuracy

ST Segment Monitoring Range
Measure and Alarm             -2.0 ~ +2.0 mV

ARR Detecting
Type       ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Alarm                                          Available
Review                                        Available
Tall T-wave rejection capability    1.2mV
Heart rate averaging the average value of the latest 6 R-R intervals which have ignored the maximum and minimum
Updating rate of the display        1s
Heart rate meter accuracy and response to irregular rhythm：
Bigeminy ventricular                                         80bpm
Bigeminy ventricular alternative lente               57 or 63bpm
Bigeminy ventricular alternative rapid              122 or 123bpm
Systoles bidirectional                                        95bpm
Response time to heart rate meter to change in heart rate 80 to 120bpm
Average          3.7s
Range             3.2s ~ 4.1s  80 to 40bpm
Average          4.7s

NIBP
Method                                                     Oscillometric
Mode                                                         Manual, Auto, STAT
Measuring Interval in AUTO Mode           1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120,240,480,960Min
Measuring Period in STAT Mode              5 Min
Pulse Rate Range                                    40 ~ 240 bpm
Alarm Type                                               SYS, DIA, MEAN

Measuring and alarm Range
Big animal Mode
SYS                        40 ~ 270 mmHg
DIA                         10 ~ 215 mmHg
MEAN                     20 ~ 235 mmHg
small Animal Mode
SYS                         40 ~ 200 mmHg
DIA                          10 ~ 150 mmHg
MEAN                      20 ~ 165 mmHg
Very Small animal Mode
SYS                         40 ~ 135 mmHg
DIA                          10 ~ 100 mmHg
MEAN                      20 ~ 110 mmHg

Resolution
Pressure                1mmHg
Accuracy
Pressure
Maximum Mean error               ±5mmHg
Maximum Standard deviation   ±8mmHg

Overpressure Protection
Big animal Mode                        297±3 mmHg
Small Mode                  240±3 mmHg
very small Mode                  147±3 mmHg

TEMPERATURE
Channel                                   2
Measuring and Alarm Range   0 ~ 50 °C
Resolution                                0.1°C
Accuracy                                 ±0.1°C
Actualization interval               about 1 Sec.
Average Time Constant          < 10 Sec.

IBP (optional)
Channel         2
Label              ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
                     ART                0~300mmHg
                     PA                  -6~120mmHg
                     CVP/RAP/LAP/ICP   -10~40mmHg
                     P1~P2              -10~300mmHg
Press Sensor
               Sensitivity              5 uV/V/mmHg
               Impedance             300-3000Ω
Resolution                           1mmHg
Accuracy                              ±2% or 1mmHg which great
Actualization Interval            about 1 Sec

Display
Device
12.1 in.  Color TFT  Made by Sharp Japan

Messages
7 Waveforms Maximum
1 Alarm LED  ( Yellow/Red)
Screenshot 1 Power LED (Green)
1 Battery Charge LED ( Yellow)
3 Sound Mode corresponding Alarm Mode

Signal Interface
ECG Output                         BNC
Amplitude                           1 V/mV
Accuracy                             < 5 %
Impedance                          50 Ω
Signal Delay                        < 20 mS

Recall
Trend Recall
Short    1 hrs, 1 Second Resolution
Long     72 hrs,   1 Min. Resolution
Alarm Event Recall
71 alarm events of all parameters and 8/16/32seconds of corresponding waveform.
NIBP Measurement Recall
At least 400 NIBP measurement data.

Battery
Rechargeable 3.7 A/Hr 7.4V Li battery
Operating time under the normal use and full charge greater than 180minutes
Operating time after the first alarm of low battery will be about 5 minutes
Recorder (Option)
Record Width                      48 mm
Paper Speed                       25/50 mm/S
Trace                                    2

Size and Weight
Size       Monitor                  310 x 140 x 263  mm
Weight Monitor                    3.8  kg
SStandard:
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models) IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers

Product Features

    High resolution screen ,size 12.1” color TFT display
    Professional veterinary software
    Light weight compact and portable   ECG. SpO2. NIBP. RESP. 2-TEMP. PR
    Built-in rechargeable lithium battery
    ECG waveforms of 7-leads display on the same screen
    72-hours graphic and tabular trends of all parameters
    480 alarm events of all parameters recall
    72 hours full-disclosure waveform review
    500 NIBP measurement data can be storage and recall
    Data and waveforms color be adjustable
    Arrhythmia analysis and S-T segment analysis
    Suitable for adult pediatric and neonatal patient




    Options
    Invasive Blood Pressure (IBP)
    Carbon dioxide (CO2) Module
    Masimo SpO2 Module
    Thermal Printer

Product Specifications

    ECG
    Lead Mode           5 Leads ( R, L, F, N, C or RA, LA, LL, RL, V)
    Lead selection      I, II, III, avR, avL, avF, V,
    Waveform             2 ch
    Lead mode           3 Leads ( R, L, F or RA, LA, LL)
    Lead selection      I, II, III,
    Waveform             1 ch
    Gain                     ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV
    HR and Alarm

    Range
    Big Animal         30 ~ 300 bpm
    Small Animal     30 ~ 350 bpm
    Accuracy                           ±1% or ±1bpm, which great
    Resolution                         1 bpm
    Sensitivity                           > 200 uV P-P
    Differential Input Impedance  > 5 MΩ
    CMRR
    Monitor                              > 105 dB
    Operation                           > 105 dB
    Diagnosis                           > 85 dB
    Electrode offset potential  ±300mV
    Leakage Current               < 10 uA
    Baseline Recovery            < 10 s  After Defi.
    ECG Signal Range            ±8 mV (Vp-p)

    Bandwidth
    Surgery                              1 ~ 15 Hz
    Monitor                                0.5 ~ 35 Hz
    Diagnostic                           0.05 ~ 100 Hz
    Calibration Signal  1 mV (Vp-p),  ±5%  Accuracy

    ST Segment Monitoring Range
    Measure and Alarm             -2.0 ~ +2.0 mV

    ARR Detecting
    Type       ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
    Alarm                                          Available
    Review                                        Available
    Tall T-wave rejection capability    1.2mV
    Heart rate averaging the average value of the latest 6 R-R intervals which have ignored the maximum and minimum
    Updating rate of the display        1s
    Heart rate meter accuracy and response to irregular rhythm：
    Bigeminy ventricular                                         80bpm
    Bigeminy ventricular alternative lente               57 or 63bpm
    Bigeminy ventricular alternative rapid              122 or 123bpm
    Systoles bidirectional                                        95bpm
    Response time to heart rate meter to change in heart rate 80 to 120bpm
    Average          3.7s
    Range             3.2s ~ 4.1s  80 to 40bpm
    Average          4.7s

    NIBP
    Method                                                     Oscillometric
    Mode                                                         Manual, Auto, STAT
    Measuring Interval in AUTO Mode           1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120,240,480,960Min
    Measuring Period in STAT Mode              5 Min
    Pulse Rate Range                                    40 ~ 240 bpm
    Alarm Type                                               SYS, DIA, MEAN

    Measuring and alarm Range
    Big animal Mode
    SYS                        40 ~ 270 mmHg
    DIA                         10 ~ 215 mmHg
    MEAN                     20 ~ 235 mmHg
    small Animal Mode
    SYS                         40 ~ 200 mmHg
    DIA                          10 ~ 150 mmHg
    MEAN                      20 ~ 165 mmHg
    Very Small animal Mode
    SYS                         40 ~ 135 mmHg
    DIA                          10 ~ 100 mmHg
    MEAN                      20 ~ 110 mmHg

    Resolution
    Pressure                1mmHg
    Accuracy
    Pressure
    Maximum Mean error               ±5mmHg
    Maximum Standard deviation   ±8mmHg

    Overpressure Protection
    Big animal Mode                        297±3 mmHg
    Small Mode                  240±3 mmHg
    very small Mode                  147±3 mmHg

    TEMPERATURE
    Channel                                   2
    Measuring and Alarm Range   0 ~ 50 °C
    Resolution                                0.1°C
    Accuracy                                 ±0.1°C
    Actualization interval               about 1 Sec.
    Average Time Constant          < 10 Sec.

    IBP (optional)
    Channel         2
    Label              ART, PA, CVP, RAP, LAP, ICP, P1, P2
    Measuring and alarm range
                         ART                0~300mmHg
                         PA                  -6~120mmHg
                         CVP/RAP/LAP/ICP   -10~40mmHg
                         P1~P2              -10~300mmHg
    Press Sensor
                   Sensitivity              5 uV/V/mmHg
                   Impedance             300-3000Ω
    Resolution                           1mmHg
    Accuracy                              ±2% or 1mmHg which great
    Actualization Interval            about 1 Sec

    Display
    Device
    12.1 in.  Color TFT  Made by Sharp Japan

    Messages
    7 Waveforms Maximum
    1 Alarm LED  ( Yellow/Red)
    Screenshot 1 Power LED (Green)
    1 Battery Charge LED ( Yellow)
    3 Sound Mode corresponding Alarm Mode

    Signal Interface
    ECG Output                         BNC
    Amplitude                           1 V/mV
    Accuracy                             < 5 %
    Impedance                          50 Ω
    Signal Delay                        < 20 mS

    Recall
    Trend Recall
    Short    1 hrs, 1 Second Resolution
    Long     72 hrs,   1 Min. Resolution
    Alarm Event Recall
    71 alarm events of all parameters and 8/16/32seconds of corresponding waveform.
    NIBP Measurement Recall
    At least 400 NIBP measurement data.

    Battery
    Rechargeable 3.7 A/Hr 7.4V Li battery
    Operating time under the normal use and full charge greater than 180minutes
    Operating time after the first alarm of low battery will be about 5 minutes
    Recorder (Option)
    Record Width                      48 mm
    Paper Speed                       25/50 mm/S
    Trace                                    2

    Size and Weight
    Size       Monitor                  310 x 140 x 263  mm
    Weight Monitor                    3.8  kg

Related Accessories

Online Inquiry

Related items

MEDITECH LIBRARY

View More

Meditech Equipment Co.,Ltd is part of Meditech Group. Product(s) described may not be licensed or available for sale in all countries. Sonotech, Sonovet, iSonic, FOs2pro, Dolphi, Defi, HeartRec,miniScan,Cardios,SpirOx,iBreath, Meditech and all corresponding design marks are trademarks of Meditech. The symbol indicates the trademark is registered. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners. Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions.

2020© Copyright Meditech Equipment Co.,Ltd (Meditech Group).
