Sonotech® Xpress
Sonotech® Xpress Fetal Heart Doppler

Designed as a Ultrasonic probe to easy find the FHB and more comfortable for pregnant.
Instruction marks are printed by laser and wont erased by using.
Head phone quality for clear sound and less noise
The option phone cable compatible for almost all apps so you can record by phone and enjoy the apps functions
Soft case available with two colors" purple & Gray"
Sonotech® Xpress Fetal Heart Doppler

Designed as a Ultrasonic probe to easy find the FHB and more comfortable for pregnant.
Instruction marks are printed by laser and wont erased by using.
Head phone quality for clear sound and less noise
The option phone cable compatible for almost all apps so you can record by phone and enjoy the apps functions
Soft case available with two colors" purple & Gray"
Read More
Small Fetal heart beat indicator.
Easy to use
Heart rate Display ( 25*14 mm)
Clear sound ,and less noise
Can hang it by hang lace
Automatic Display Freezing After remove from the body
Light weight of 80g, batteries included
Runs on standard AAA batteries and continuous working time is 8 hours

Display: 25 mm × 14 mm LCD display

FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

Ultrasound Sensor:
Nominal Frequency:        2.0MHz,
Working Frequency:        2.0MHz±10%
                                        P-: <0.5MPa
                                        Iob: <10 mW/cm2
                                        Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power:    P<10 mW

Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature:               +5℃～+40℃
Humidity:                      ≤80％
Atmospheric Pressure: 70 kPa～l06kPa

Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa
Standard:

Audio stereo Cable   .................. 1Pcs
AAA Battery ............................... 2Pcs
Headphone  ............................... 1Pcs
Cleaning Cloth  .......................... 1Pcs

Options:

External mini Speakers
Audio smart device Cable (Android .iOs)
Recharge-able Battery
Charger (Panasonic)

Product Features

    Small Fetal heart beat indicator.
    Easy to use
    Heart rate Display ( 25*14 mm)
    Clear sound ,and less noise
    Can hang it by hang lace
    Automatic Display Freezing After remove from the body
    Light weight of 80g, batteries included
    Runs on standard AAA batteries and continuous working time is 8 hours

Product Specifications

    Display: 25 mm × 14 mm LCD display

    FHR Performance
    FHR Measuring Range: 50~240BPM (BPM: beat per minute)
    Resolution: 1BPM
    Accuracy: ±2BPM
    Power consumption:<0.8W
    Auto Shut-OFF: After 1 minute no signal, power off automatically.
    Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).

    Ultrasound Sensor:
    Nominal Frequency:        2.0MHz,
    Working Frequency:        2.0MHz±10%
                                            P-: <0.5MPa
                                            Iob: <10 mW/cm2
                                            Ispta: <50mW/cm2
    Ultrasonic Output Intensity: Isata<5 mW/cm2
    Ultrasonic Output Power:    P<10 mW

    Working Mode: Continuous wave Doppler
    Effective Radiating Area of Transducer: 157mm2±15%
    Temperature:               +5℃～+40℃
    Humidity:                      ≤80％
    Atmospheric Pressure: 70 kPa～l06kPa

    Transport and Storage:
    Temperature: -10℃～+55℃
    Humidity: ≤93％
    Atmospheric Pressure: 50 kPa～l06kPa

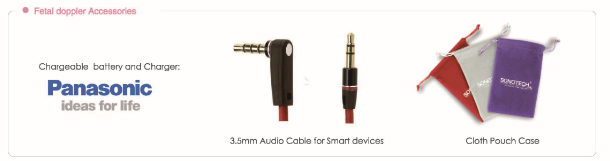

Related Accessories

    Standard:

    Audio stereo Cable   .................. 1Pcs
    AAA Battery ............................... 2Pcs
    Headphone  ............................... 1Pcs
    Cleaning Cloth  .......................... 1Pcs

    Options:

    External mini Speakers
    Audio smart device Cable (Android .iOs)
    Recharge-able Battery
    Charger (Panasonic)
