BabySonic®
BabySonic®  mini fetal doppler comes with an audio output which can be connected with headphone for simple auscultation or simple listening.
Can be connected to a recorder device to record baby's heartbeat to a CD, MP3, a PC, a cell phone or another storage medium of your choice to share the happiness with your friends and family members.

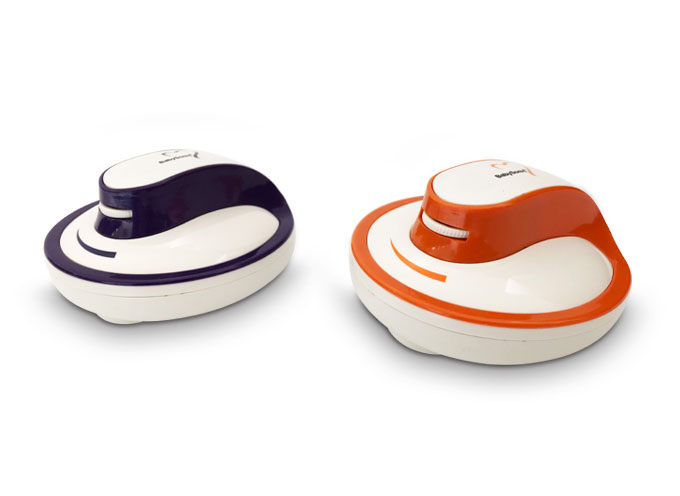

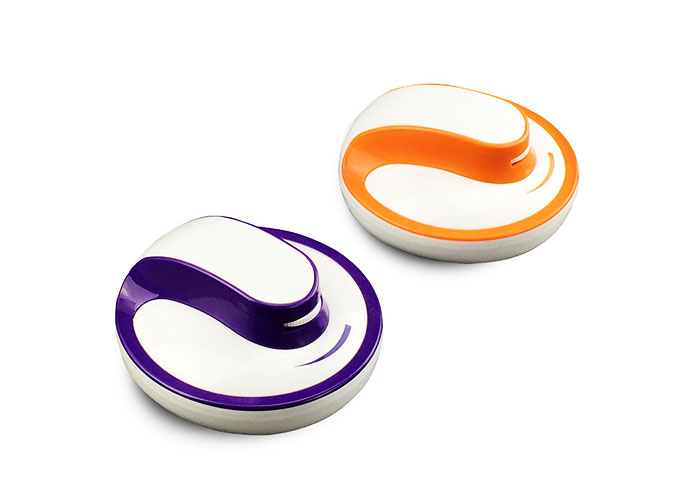

Available in "Orange" and "purple" color
BabySonic®  mini fetal doppler comes with an audio output which can be connected with headphone for simple auscultation or simple listening.
Can be connected to a recorder device to record baby's heartbeat to a CD, MP3, a PC, a cell phone or another storage medium of your choice to share the happiness with your friends and family members.

Available in "Orange" and "purple" color
Read More
Listen to your unborn baby's heartbeat from the comfort of your own home
Can be used from 12 weeks into the pregnancy
Record the unborn baby's heartbeat using recording cable
Record the Mother's heartbeat and play it back to help comfort the new born baby
Conforms to EC Directive 93/42/EEC(MDD) concerning medical devices
BabySonic fetal doppler uses a 9V alkaline battery


Ultrasound:
Ultrasonic emitting frequency: 2.5MHz
Ultrasonic emitting power: <10mW/cm2
Overall sensitivity at the distances 200mm from the face of the probe
(Doppler frequency: 500±50Hz, Target velocity: 10cm/s~40cm/s):≥90dB
Spatial-peak temporal-peak acoustic pressure: ≤1MPa
Output power: <20mW

Effective area of the ultrasonic transducer active element: 2.65cm2±0.3cm
The acoustic coupling medium for normal use: ph: 5.5~8, Acoustic
impedance: ≤1.7*105g /cm2·s
Working mode: Continuous wave Doppler

Audio output:
Audio output power: <0.5 W
Audio out Socket: Φ3.5mm/USB interface

Recommended battery type:
9V DC alkaline battery (IEC Type No. 6F22 or equivalent)
Stand-by Time: >4hours
Suitable gestation: 12 gestational weeks or later, difference in pregnant mater.

Physical Characteristic:
Size: 104.5(length) * 50(width) * 70(height) mm
Weight: 60.5g (only main unit, not including battery)
Standard:

Audio stereo Cable   .................. 1Pcs
Headphone  ............................... 1Pcs
Cleaning Cloth  .......................... 1Pcs
Audio stereo Cable .................... 1Pcs

Options:
9V Battery
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
Rechargable Battery
Charger (Panasonic)

Product Features

    Listen to your unborn baby's heartbeat from the comfort of your own home
    Can be used from 12 weeks into the pregnancy
    Record the unborn baby's heartbeat using recording cable
    Record the Mother's heartbeat and play it back to help comfort the new born baby
    Conforms to EC Directive 93/42/EEC(MDD) concerning medical devices
    BabySonic fetal doppler uses a 9V alkaline battery



Product Specifications

    Ultrasound:
    Ultrasonic emitting frequency: 2.5MHz
    Ultrasonic emitting power: <10mW/cm2
    Overall sensitivity at the distances 200mm from the face of the probe
    (Doppler frequency: 500±50Hz, Target velocity: 10cm/s~40cm/s):≥90dB
    Spatial-peak temporal-peak acoustic pressure: ≤1MPa
    Output power: <20mW

    Effective area of the ultrasonic transducer active element: 2.65cm2±0.3cm
    The acoustic coupling medium for normal use: ph: 5.5~8, Acoustic
    impedance: ≤1.7*105g /cm2·s
    Working mode: Continuous wave Doppler

    Audio output:
    Audio output power: <0.5 W
    Audio out Socket: Φ3.5mm/USB interface

    Recommended battery type:
    9V DC alkaline battery (IEC Type No. 6F22 or equivalent)
    Stand-by Time: >4hours
    Suitable gestation: 12 gestational weeks or later, difference in pregnant mater.

    Physical Characteristic:
    Size: 104.5(length) * 50(width) * 70(height) mm
    Weight: 60.5g (only main unit, not including battery)

Related Accessories

    Standard:

    Audio stereo Cable   .................. 1Pcs
    Headphone  ............................... 1Pcs
    Cleaning Cloth  .......................... 1Pcs
    Audio stereo Cable .................... 1Pcs

    Options:
    9V Battery
    External mini Speakers
    Carry Case
    Audio smart device Cable (Android .iOs)
    Rechargable Battery
    Charger (Panasonic)
