MD908B

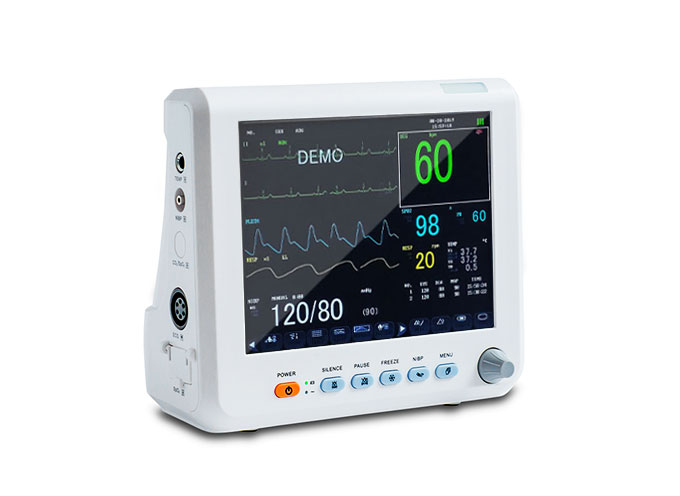

MD908B Patient Monitor with 8 inch Screen size, light  weight and small size

Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer
Touch Screen
Car Charger
MD908B Patient Monitor with 8 inch Screen size, light  weight and small size

Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer
Touch Screen
Car Charger
Read More
High resolution 8” color TFT display
6 Parameters : ECG,HR, Resp, NIBP, SpO2, TEMP,
Light weight, compact and portable
Built-in rechargeable lithium battery
Unique human voice alarm
Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
Powerful storage: Maximum 720 Hour graphic and tabular trends of all
parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
System software can be upgraded through network
Data and waveforms color be adjustable
Arrhythmia analysis and S-T segment analysis
Suitable for adult, paediatric and neonatal patient

Technical Specifications:

ECG
Lead Mode                   5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection              I, II, III, avR, avL, avF, V,
Waveform                     2 ch
Lead mode                   3 Leads ( R, L, F or RA, LA, LL)
Lead selection              I, II, III,
Waveform                    1 ch
Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV,  auto
HR and Alarm
      Range
      Adult                     15 ~ 300 bpm
      Neo/Ped               15 ~ 350 bpm
      Accuracy               ± 1% or ± 1bpm,which great
      Resolution            1 bpm
     Sensitivity              > 200 (uV )
Differential Input Impedance  > 5 MΩ
CMRR
      Monitor                 > 105 dB
     Operation              > 105 dB
     Diagnosis              > 85 dB
Electrode offset potential  ±300mV
Leakage Current       < 10 uA
Baseline Recovery    < 3 S  After Defi.
ECG Signal Range     ±8 m V ( Vp-p )
Bandwidth
     Surgery                 1 ~ 15 Hz
     Monitor                  0.5 ~ 35 Hz
     Diagnostic             0.05 ~ 100 Hz
Calibration Signal    1 (mV ),  Accuracy ：±5%
ST Segment Monitoring Range
Measure and Alarm -2.0 ~ +2.0 mV
ARR Detecting
Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY,MISSED BEATS, PNP, PNC
    Alarm     Available
    Review    Available

RESPARATION
Method      Impedance between R-F(RA-LL)
Differential Input Impedance    >2.5 MΩ
Measuring Impedance Range:  0.3~5.0Ω
Base line Impedance Range:    0 – 2.5  KΩ
Bandwidth     0.3 ~ 2.5 Hz
Resp. Rate
Measuring and Alarm Range
     Adult                0 ~ 120 rpm
     Neo/Ped          0 ~ 150 rpm
Resolution                      1 rpm
Accuracy                      ±2 rpm
Apean Alarm            10 ~ 40 S

NIBP
Method                Oscillometric
Mode        Manual, Auto, STAT
Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range    40 ~ 240 bpm
Alarm Type            SYS, DIA, MEAN
Measuring and alarm range
Adult Mode
             SYS   40 ~ 270 mmHg
             DIA    10 ~ 215 mmHg
             MEAN  20 ~ 235 mmHg
Pediatric Mode
             SYS   40 ~ 200 mmHg
             DIA    10 ~ 150 mmHg
             MEAN  20 ~ 165 mmHg
Neonatal Mode
             SYS   40 ~ 135 mmHg
             DIA    10 ~ 100 mmHg
             MEAN   20 ~ 110 mmHg
Resolution
              Pressure    1mmHg
              Accuracy
              Pressure
Maximum Mean error     ±5mmHg
Maximum Standard deviation  ±8mmHg
Overpressure Protection
             Adult Mode        297±3 mmHg
             Pediatric Mode  240±3 mmHg
             Neonatal Mode  147±3 mmHg

SpO2
Measuring Range          0 ~ 100 %
Alarm Range                 0 ~ 100 %
Resolution                     1 %
Accuracy                      70% ~ 100%  ±2 %
                                     0%  ~  69%  unspecified
Actualization interval   about 1 Sec.
Alarm Delay                  10 Sec.
Pulse Rate
Measuring and Alarm Range  0~254bpm
Resolution                        1bpm
 Accuracy                         ±2bpm

TEMPERATURE
Channel      1
Measuring and Alarm Range  0 ~ 50  C
Resolution                          0.1~C
Accuracy                          ±0.1~C
Actualization interval about 1 Sec.
Average Time Constant   < 10 Sec.

IBP
Label      ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measuring and alarm range
    ART                           0 ~ 300 mmHg
    PA                             -6 ~ 120 mmHg
    CVP/RAP/LAP/ICP  -10 ~ 40 mmHg
    P1/P2                       -10 ~ 300 mmHg
Press Sensor
Sensitivity                      5  uV/V/mmHg
   Impedance                 300-3000Ω
   Resolution                    1 mmHg
   Accuracy      ±2% or ±1mmHg, which great about 1 Sec.

Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
TEMP Probe (Adult)  ....... 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
NIBP Tube(150cm)  ......... 1Pcs
Ground Cable   ................ 1Pcs
Power Cable  ................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers

Product Features

    High resolution 8” color TFT display
    6 Parameters : ECG,HR, Resp, NIBP, SpO2, TEMP,
    Light weight, compact and portable
    Built-in rechargeable lithium battery
    Unique human voice alarm
    Rich screen layouts: Standard, Big font, Trend table, NIBP trend, ECG full lead, OxyCRG, IoC Layout
    Powerful storage: Maximum 720 Hour graphic and tabular trends of all
    parameters, up to 10000 NIBP review ,200alarm review ,2Hours of all waveforms
    System software can be upgraded through network
    Data and waveforms color be adjustable
    Arrhythmia analysis and S-T segment analysis
    Suitable for adult, paediatric and neonatal patient


Product Specifications

    Technical Specifications:

    ECG
    Lead Mode                   5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
    Lead selection              I, II, III, avR, avL, avF, V,
    Waveform                     2 ch
    Lead mode                   3 Leads ( R, L, F or RA, LA, LL)
    Lead selection              I, II, III,
    Waveform                    1 ch
    Gain x2.5mm/mV, x5.0mm/mV, x10mm/mV, x20mm/mV,  auto
    HR and Alarm
          Range
          Adult                     15 ~ 300 bpm
          Neo/Ped               15 ~ 350 bpm
          Accuracy               ± 1% or ± 1bpm,which great
          Resolution            1 bpm
         Sensitivity              > 200 (uV )
    Differential Input Impedance  > 5 MΩ
    CMRR
          Monitor                 > 105 dB
         Operation              > 105 dB
         Diagnosis              > 85 dB
    Electrode offset potential  ±300mV
    Leakage Current       < 10 uA
    Baseline Recovery    < 3 S  After Defi.
    ECG Signal Range     ±8 m V ( Vp-p )
    Bandwidth
         Surgery                 1 ~ 15 Hz
         Monitor                  0.5 ~ 35 Hz
         Diagnostic             0.05 ~ 100 Hz
    Calibration Signal    1 (mV ),  Accuracy ：±5%
    ST Segment Monitoring Range
    Measure and Alarm -2.0 ~ +2.0 mV
    ARR Detecting
    Type ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY,MISSED BEATS, PNP, PNC
        Alarm     Available
        Review    Available

    RESPARATION
    Method      Impedance between R-F(RA-LL)
    Differential Input Impedance    >2.5 MΩ
    Measuring Impedance Range:  0.3~5.0Ω
    Base line Impedance Range:    0 – 2.5  KΩ
    Bandwidth     0.3 ~ 2.5 Hz
    Resp. Rate
    Measuring and Alarm Range
         Adult                0 ~ 120 rpm
         Neo/Ped          0 ~ 150 rpm
    Resolution                      1 rpm
    Accuracy                      ±2 rpm
    Apean Alarm            10 ~ 40 S

    NIBP
    Method                Oscillometric
    Mode        Manual, Auto, STAT
    Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
    Measuring Period in STAT Mode 5 Min
    Pulse Rate Range    40 ~ 240 bpm
    Alarm Type            SYS, DIA, MEAN
    Measuring and alarm range
    Adult Mode
                 SYS   40 ~ 270 mmHg
                 DIA    10 ~ 215 mmHg
                 MEAN  20 ~ 235 mmHg
    Pediatric Mode
                 SYS   40 ~ 200 mmHg
                 DIA    10 ~ 150 mmHg
                 MEAN  20 ~ 165 mmHg
    Neonatal Mode
                 SYS   40 ~ 135 mmHg
                 DIA    10 ~ 100 mmHg
                 MEAN   20 ~ 110 mmHg
    Resolution
                  Pressure    1mmHg
                  Accuracy
                  Pressure
    Maximum Mean error     ±5mmHg
    Maximum Standard deviation  ±8mmHg
    Overpressure Protection
                 Adult Mode        297±3 mmHg
                 Pediatric Mode  240±3 mmHg
                 Neonatal Mode  147±3 mmHg

    SpO2
    Measuring Range          0 ~ 100 %
    Alarm Range                 0 ~ 100 %
    Resolution                     1 %
    Accuracy                      70% ~ 100%  ±2 %
                                         0%  ~  69%  unspecified
    Actualization interval   about 1 Sec.
    Alarm Delay                  10 Sec.
    Pulse Rate
    Measuring and Alarm Range  0~254bpm
    Resolution                        1bpm
     Accuracy                         ±2bpm

    TEMPERATURE
    Channel      1
    Measuring and Alarm Range  0 ~ 50  C
    Resolution                          0.1~C
    Accuracy                          ±0.1~C
    Actualization interval about 1 Sec.
    Average Time Constant   < 10 Sec.

    IBP
    Label      ART, PA, CVP, RAP, LAP, ICP, P1, P2
    Measuring and alarm range
        ART                           0 ~ 300 mmHg
        PA                             -6 ~ 120 mmHg
        CVP/RAP/LAP/ICP  -10 ~ 40 mmHg
        P1/P2                       -10 ~ 300 mmHg
    Press Sensor
    Sensitivity                      5  uV/V/mmHg
       Impedance                 300-3000Ω
       Resolution                    1 mmHg
       Accuracy      ±2% or ±1mmHg, which great about 1 Sec.
