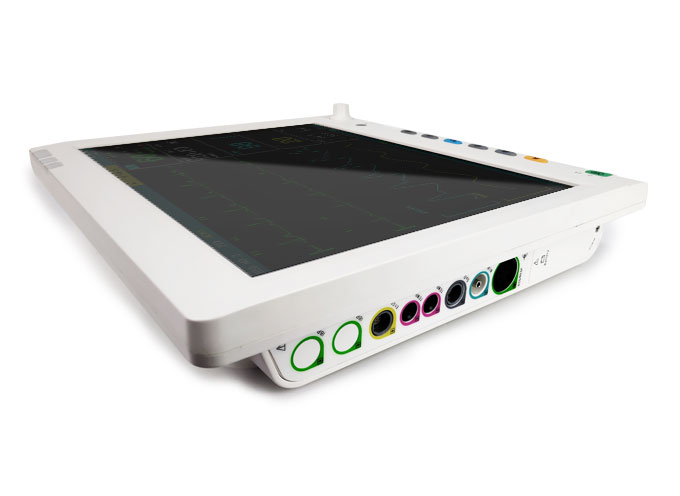

MD9015T
MD9015Touch screen 15 inch patient monitor 192-hour trend graph,1000 group of blood pressure list,ST segment measurements, arrhythmia analysis and more functions,
Support up to 32 TCP/IP network connection,composed of a central information system..

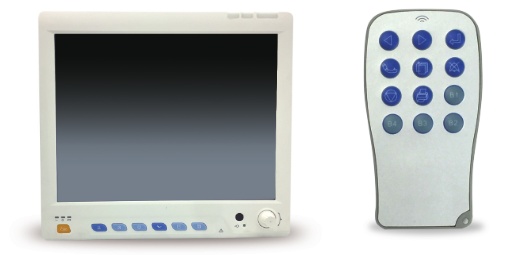

Comes with remote control


Masimo spo2 module (Option)
MD9015Touch screen 15 inch patient monitor 192-hour trend graph,1000 group of blood pressure list,ST segment measurements, arrhythmia analysis and more functions,
Support up to 32 TCP/IP network connection,composed of a central information system..
Comes with remote control


Masimo spo2 module (Option)
Read More

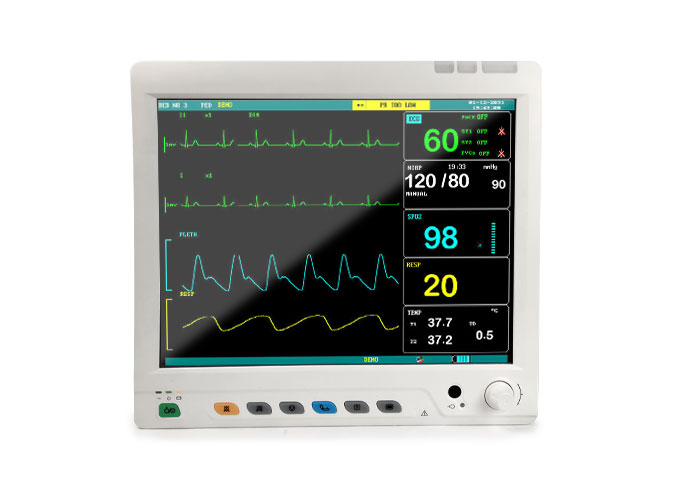

15” high resolution color TFT display with maximum 13 waveforms
Full touch-screen enables intuitive operation by clicking on the specific parameters
of the waveform in real time, standard configuration includes the navigation knob
Pacemaker detection, electrosurgical interference proof
Defibrillation protection and defibrillation synchronization
SD Card slot enable memory extension for large data storage

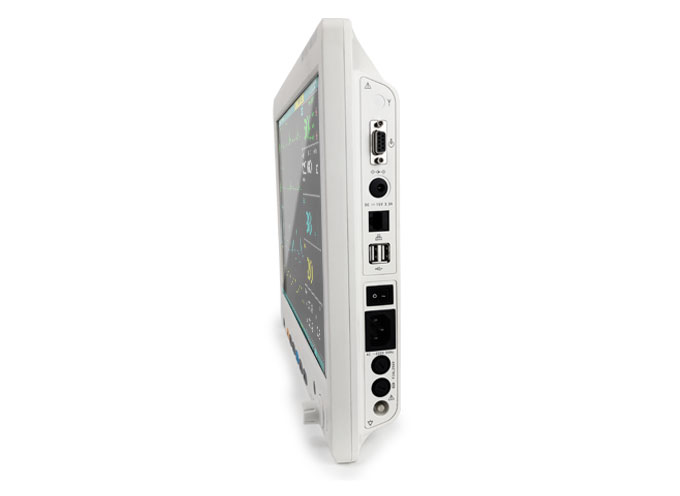

USB and serial port enable abundant future upgrades
VGA output and Analog output
OxyCRG available to judge the respiration and circulation function for neonate
Large font display
Arrhythmia and S-T segment analysis
Built-in rechargeable Li-ion (6hours maximum with 2x 4200mAh batteries)
Nurse Call function and bi-directional communication with MFM-CMS central station
Multi language: English/Simplified Chinese/Traditional Chinese/Spanish/Czech/Italian/Polish/French/German/Brazilian/Portugese/Russian.
Standard configuration: 3/5-lead ECG, NIBP, SpO2, RESP, 2-Temp, PR
Optional: 12-lead ECG, Nellcor-SpO2, Omron NIBP, 2-IBP/4-IBP, Mainstream/Side stream CO2,
CO, Multi-Gas, Full Touch Screen, Thermal Recorder, WLAN Accessory
Large Data Storage: 120 hours graphic and tabular trends of all parameters; 1200 sets of NIBP
 measurement and 70 alarm events; 2-USB ports and SC card slot ensure data storage/function upgrades.
Clinical data can be viewed and managed via Patientcare viewer software (To be released)
Clinical network: bi-directional communication with CMS-2000 central station by wired or wireless connection
Complete and flexible mounting solution for ICU and operation room. High-end parameters for more flexible clinical applications.


MD9015T Support:
DC power input and to adapt to a variety of environmental conditions
External recorder can print the recorded waveform data and other information in real time
External the EtCO2 interface can be connected to the mainstream CO2 module to facilitate the clinical needs
Drug concentration in titration calculations to support the event functions to customize and record
Up to 32 TCP / IP network connection composed of a central information system
Wireless networking
15 inch touch screen patient monitor,Slim patient monitor ,Meditech patient monitor

Options
Invasive Blood Pressure (IBP)
Carbon dioxide (CO2) Module
Masimo SpO2 Module
Thermal Printer
Electrocardiogram (ECG)
Input mode Five-lead ECG input / three-lead ECG input
Lead selection I, II, III, aVR, aVL, aVF, V-
Gain selection AUTO,0.25X,0.5X,1X,2X,4X
Operating mode Diagnostic mode, monitoring mode, operation mode
Calibration signal 1mV ±5%
Protection The isolation voltage 4000V, 50/60Hz. Anti-high-frequency interference of electric knife. Anti-defibrillation protection.
Pacemaker at the same time use Support
Electrode off instructions Each electrode (RL excluded)
Scanning speed 12.5mm/s, 25 mm/s, 50 mm/s
Common mode rejection ratio ≥90dB
Input impedance ≥5.0MΩ

Heartrate (HR)
Measuring range Adult 30 ~ 300bpm, newborns 30 to 350 bpm
Resolution 1 bpm
Accuracy < ±5bpm
Heart rate sensitivity ≥0.20mVp-p
Alarm range 15 to 350 bpm, upper and lower limits
Alarm indication Audible and visual alarm, display the data and parameters flashing display alarm
message text prompts, there are three levels of alarm

Pulse Oximetry
SPO2 Range:                          1% to 99%
Resolution:                              1%
Accuracy:                                70% to 99% range: ±2%;
1% to 69% range:                    ±5%;
Method:                                  Dual wavelength LED

ST-segment
ST-segment measurement range -2.0～+2.0mV
ST-segment measurement accuracy Within the range of -0.8 ~ +0.8 mV: ± 0.02mV or reading± 10%,
Whichever is greater; Other range: undefined
Resolution 0.01mV
ST-segment update cycle 10s
ST segment alarm range -2.0 ~ +2.0 MV, the upper and lower limits continuously adjustable

Arrhythmia analysis
Arrhythmia types 13 kinds of (scalable)

Respiration Rate
Rate:                                  2 to 120 bpm (CO2)
Resolution:                        1 breath/min

NIBP (Non-invasive Blood Pressure)
Technique:                        Oscillometric during inflation
Range:                               Adult/Pediatric: 40 to 240 mmHg
Neonate:                           10 to 150 mmHg
Measurement Cycle:         < 40 sec. typical
Automatic Measurement
Cycles (Selectable):          2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
STAT Mode:                      5 minutes of continuous readings
Max. Allowable Cuff
Pressure: Adult:                300mmHg
Pediatric:                          240 mmHg;
Neonate:                          150 mmHg
Resolution:                       1 mmHg
Transducer Accuracy:       ±2 mmHg or ±2% of reading,
Heart (Pulse) Rate
Range:                              30 to 250 bpm
Accuracy:                        ±2 bpm or ±3%, whichever is greater


EtCO2 technological index

Interface form External interface
Range of
measurement		 0~10 kPa or (0~75) mmHg
precision（error） (0kPa~5.4kPa) the error is ±0.3kPa、
(5.5kPa~10.0kPa)the error is ±0.7kPa
Alarm upper limit 2.1~13.2 kPa
Alarm lower limit 0~6.5 kPa
time 12s
EtCO2 exist
Unit kPa / mmHg / %
Compatibility
external main stream and side stream are compatible

IBP technological index

Measured channel Single way and double way are optional
Range of
measurement		 SYS： 6.7kPa～32.0kPa(50mmHg～240mmHg)
MEAN： 3.4kPa～26.6kPa(26mmHg～200mmHg)
DIA： 2.9kPa～24.0kPa(22mmHg～180mmHg)
Mean error ≤±0.4kPa (±3mmHg)
Range of alarm SYS：  upper limit   0.3kPa~53.3kPa(2mmHg~400mmHg)
Lower limit   0kPa~53.1kPa(0mmHg~398mmHg)
MEAN：  upper limit    0.3kPa~53.3kPa (2mmHg~400mmHg)
Lower limit   0kPa~53.1kPa (0mmHg~398mmHg)
DIA：    upper limit    0.3kPa~53.3kPa ( 2mmHg~400mmHg)
          Lower limit   0kPa~53.1kPa ( 0mmHg~398mmHg)
Measured unit mmHg/kPa
Specification of
sensor		 DPT-248（space）
Consumables mode SCW-UTAH-01






Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
TEMP Probe (Adult)  ....... 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
NIBP Tube(150cm)  ......... 1Pcs
Wall mount with basket .... 1pcs
Remote control .................1pcs
Ground Cable   ................ 1Pcs
Power Cable  ................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)

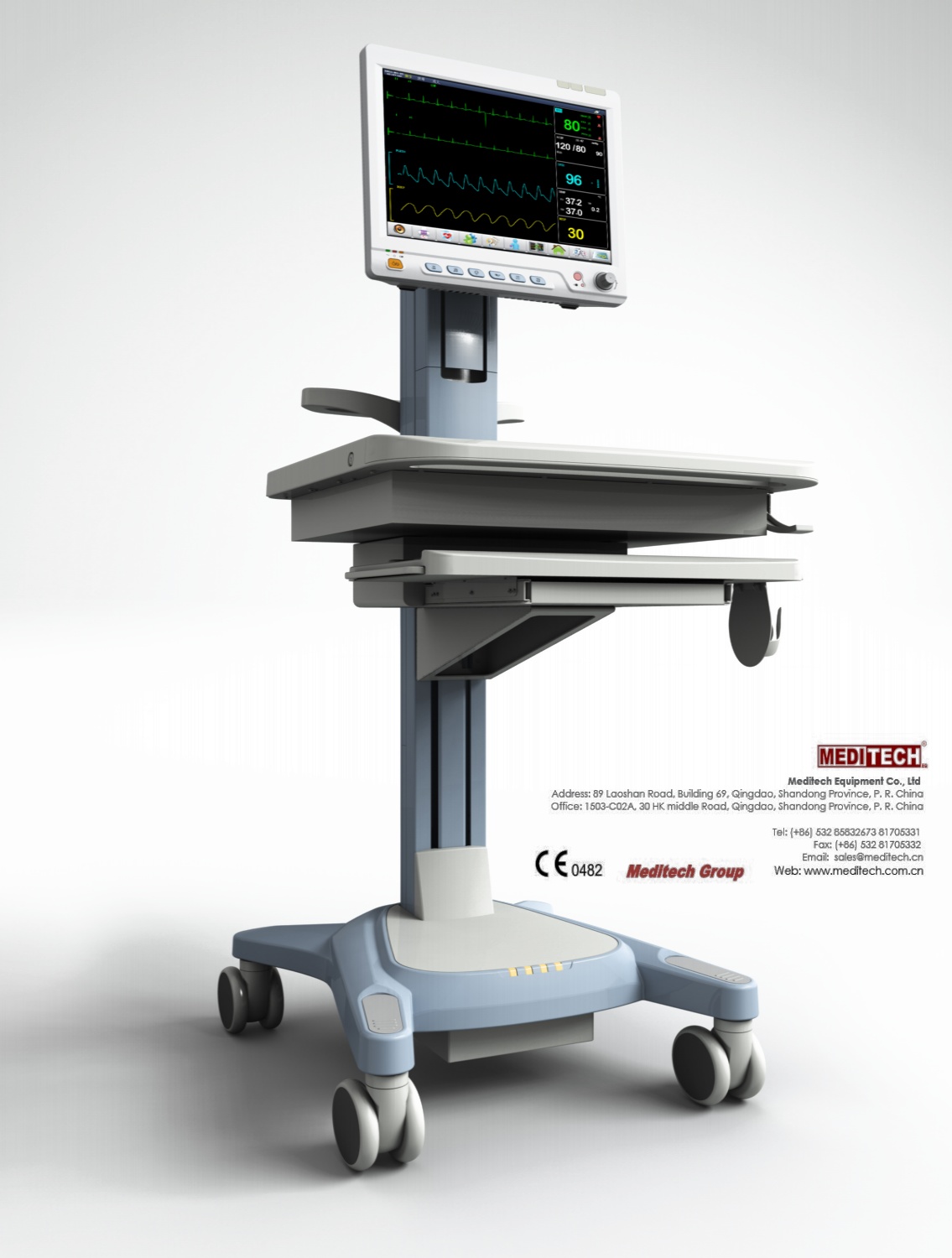

Patient Monitor Trolley (5 Models)
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers


Product Features

    15” high resolution color TFT display with maximum 13 waveforms
    Full touch-screen enables intuitive operation by clicking on the specific parameters
    of the waveform in real time, standard configuration includes the navigation knob
    Pacemaker detection, electrosurgical interference proof
    Defibrillation protection and defibrillation synchronization
    SD Card slot enable memory extension for large data storage
    USB and serial port enable abundant future upgrades
    VGA output and Analog output
    OxyCRG available to judge the respiration and circulation function for neonate
    Large font display
    Arrhythmia and S-T segment analysis
    Built-in rechargeable Li-ion (6hours maximum with 2x 4200mAh batteries)
    Nurse Call function and bi-directional communication with MFM-CMS central station
    Multi language: English/Simplified Chinese/Traditional Chinese/Spanish/Czech/Italian/Polish/French/German/Brazilian/Portugese/Russian.
    Standard configuration: 3/5-lead ECG, NIBP, SpO2, RESP, 2-Temp, PR
    Optional: 12-lead ECG, Nellcor-SpO2, Omron NIBP, 2-IBP/4-IBP, Mainstream/Side stream CO2,
    CO, Multi-Gas, Full Touch Screen, Thermal Recorder, WLAN Accessory
    Large Data Storage: 120 hours graphic and tabular trends of all parameters; 1200 sets of NIBP
     measurement and 70 alarm events; 2-USB ports and SC card slot ensure data storage/function upgrades.
    Clinical data can be viewed and managed via Patientcare viewer software (To be released)
    Clinical network: bi-directional communication with CMS-2000 central station by wired or wireless connection
    Complete and flexible mounting solution for ICU and operation room. High-end parameters for more flexible clinical applications.


    MD9015T Support:
    DC power input and to adapt to a variety of environmental conditions
    External recorder can print the recorded waveform data and other information in real time
    External the EtCO2 interface can be connected to the mainstream CO2 module to facilitate the clinical needs
    Drug concentration in titration calculations to support the event functions to customize and record
    Up to 32 TCP / IP network connection composed of a central information system
    Wireless networking
    15 inch touch screen patient monitor,Slim patient monitor ,Meditech patient monitor

    Options
    Invasive Blood Pressure (IBP)
    Carbon dioxide (CO2) Module
    Masimo SpO2 Module
    Thermal Printer

Product Specifications

    Electrocardiogram (ECG)
    Input mode Five-lead ECG input / three-lead ECG input
    Lead selection I, II, III, aVR, aVL, aVF, V-
    Gain selection AUTO,0.25X,0.5X,1X,2X,4X
    Operating mode Diagnostic mode, monitoring mode, operation mode
    Calibration signal 1mV ±5%
    Protection The isolation voltage 4000V, 50/60Hz. Anti-high-frequency interference of electric knife. Anti-defibrillation protection.
    Pacemaker at the same time use Support
    Electrode off instructions Each electrode (RL excluded)
    Scanning speed 12.5mm/s, 25 mm/s, 50 mm/s
    Common mode rejection ratio ≥90dB
    Input impedance ≥5.0MΩ

    Heartrate (HR)
    Measuring range Adult 30 ~ 300bpm, newborns 30 to 350 bpm
    Resolution 1 bpm
    Accuracy < ±5bpm
    Heart rate sensitivity ≥0.20mVp-p
    Alarm range 15 to 350 bpm, upper and lower limits
    Alarm indication Audible and visual alarm, display the data and parameters flashing display alarm
    message text prompts, there are three levels of alarm

    Pulse Oximetry
    SPO2 Range:                          1% to 99%
    Resolution:                              1%
    Accuracy:                                70% to 99% range: ±2%;
    1% to 69% range:                    ±5%;
    Method:                                  Dual wavelength LED

    ST-segment
    ST-segment measurement range -2.0～+2.0mV
    ST-segment measurement accuracy Within the range of -0.8 ~ +0.8 mV: ± 0.02mV or reading± 10%,
    Whichever is greater; Other range: undefined
    Resolution 0.01mV
    ST-segment update cycle 10s
    ST segment alarm range -2.0 ~ +2.0 MV, the upper and lower limits continuously adjustable

    Arrhythmia analysis
    Arrhythmia types 13 kinds of (scalable)

    Respiration Rate
    Rate:                                  2 to 120 bpm (CO2)
    Resolution:                        1 breath/min

    NIBP (Non-invasive Blood Pressure)
    Technique:                        Oscillometric during inflation
    Range:                               Adult/Pediatric: 40 to 240 mmHg
    Neonate:                           10 to 150 mmHg
    Measurement Cycle:         < 40 sec. typical
    Automatic Measurement
    Cycles (Selectable):          2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
    STAT Mode:                      5 minutes of continuous readings
    Max. Allowable Cuff
    Pressure: Adult:                300mmHg
    Pediatric:                          240 mmHg;
    Neonate:                          150 mmHg
    Resolution:                       1 mmHg
    Transducer Accuracy:       ±2 mmHg or ±2% of reading,
    Heart (Pulse) Rate
    Range:                              30 to 250 bpm
    Accuracy:                        ±2 bpm or ±3%, whichever is greater


    EtCO2 technological index

    Interface form External interface
    Range of
    measurement    		 0~10 kPa or (0~75) mmHg
    precision（error） (0kPa~5.4kPa) the error is ±0.3kPa、
    (5.5kPa~10.0kPa)the error is ±0.7kPa
    Alarm upper limit 2.1~13.2 kPa
    Alarm lower limit 0~6.5 kPa
    time 12s
    EtCO2 exist
    Unit kPa / mmHg / %
    Compatibility
    external main stream and side stream are compatible

    IBP technological index

    Measured channel Single way and double way are optional
    Range of
    measurement    		 SYS： 6.7kPa～32.0kPa(50mmHg～240mmHg)
    MEAN： 3.4kPa～26.6kPa(26mmHg～200mmHg)
    DIA： 2.9kPa～24.0kPa(22mmHg～180mmHg)
    Mean error ≤±0.4kPa (±3mmHg)
    Range of alarm SYS：  upper limit   0.3kPa~53.3kPa(2mmHg~400mmHg)
    Lower limit   0kPa~53.1kPa(0mmHg~398mmHg)
    MEAN：  upper limit    0.3kPa~53.3kPa (2mmHg~400mmHg)
    Lower limit   0kPa~53.1kPa (0mmHg~398mmHg)
    DIA：    upper limit    0.3kPa~53.3kPa ( 2mmHg~400mmHg)
              Lower limit   0kPa~53.1kPa ( 0mmHg~398mmHg)
    Measured unit mmHg/kPa
    Specification of
    sensor    		 DPT-248（space）
    Consumables mode SCW-UTAH-01






Related Accessories

Online Inquiry

Related items

MEDITECH LIBRARY

View More

Meditech Equipment Co.,Ltd is part of Meditech Group. Product(s) described may not be licensed or available for sale in all countries. Sonotech, Sonovet, iSonic, FOs2pro, Dolphi, Defi, HeartRec,miniScan,Cardios,SpirOx,iBreath, Meditech and all corresponding design marks are trademarks of Meditech. The symbol indicates the trademark is registered. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners. Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions.

2020© Copyright Meditech Equipment Co.,Ltd (Meditech Group).
