MD905

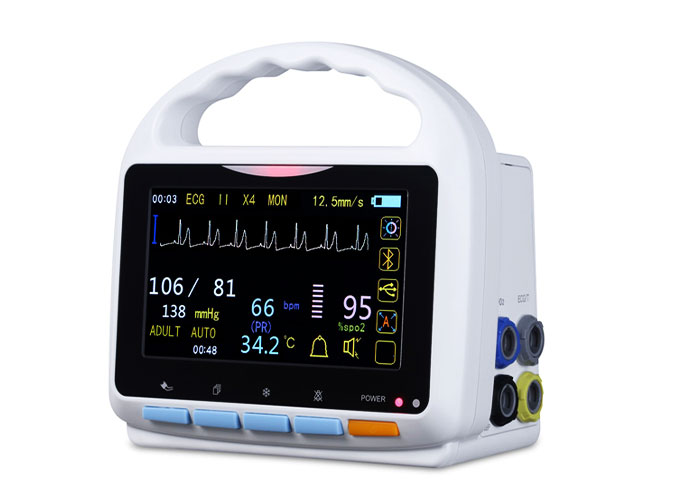

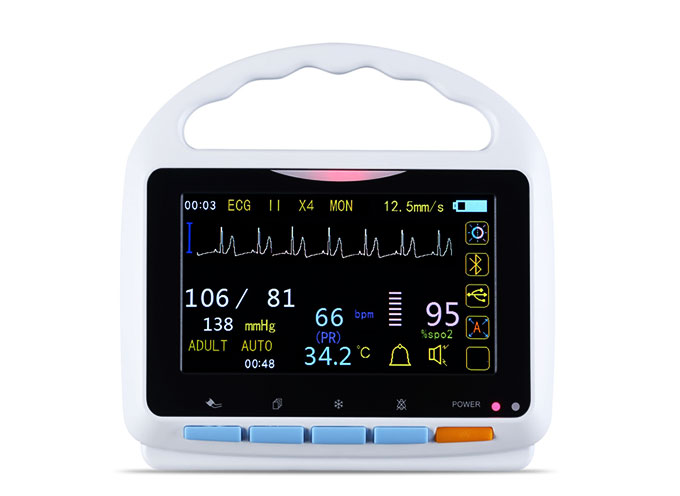

MD905  Patient Monitor Touch screen,5.0 inch color TFT Screen,simple for operating,quickly&accurately measure the data
Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload

MD905  Patient Monitor Touch screen,5.0 inch color TFT Screen,simple for operating,quickly&accurately measure the data
Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload

Read More
Portable,compact, easy for carrying and operation
Clear and bright colour 5.0 Inch TFT-LCD with touch screen and real time display
Intelligent Measuring of ECG.NIBP.SpO2.PR.PLETH.TEMP
Storage/Review trend data up to 129.6 hours and 3888 groups
Storage ECG waveform,each section is 8 seconds, totally is 30 sections; NIBP,SPO2,pulse rate and TEMP data sheet review up to 100 groups; which can be printed via connecting BlueTooth printer
Utility PC software package for long time monitoring,history data  uploading/review/printing/storage.
Uploading history data to PC for reviewing, storage or printing via connecting USB data line or BlueTooth wireless
Audio and visual alarm
Built-in rechargeable Li-ion battery, up to 15-hour power supply
Back light can be adjusted freely
To fulfill Communication function,please install the data viewer software in a PC equipped with a printer, and connect the monitor with the PC by an USB cable or BlueTooth wireless.



Options:
Bluetooth Thermal printer
Bluetooth Printer
ECG
Input：3 /5Lead ECG cable standard AAMI cable connector
Lead Selection：I, II, III
Gain Selection：×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05～100Hz (-3dB)
                                              filter: 0.5～40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation

Heart Rate
Measuring Range: 20 bpm～300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm

SpO2
SpO2%
Measuring Range:0%～100%
Resolution:1 %
Accuracy:±2 %(90%～99%)
                ±3 %(70%～89%)unspecified (0%～69%)
Pulse Rate
Measuring and Alarm Range:20～300bpm
Resolution: 1bpm
Accuracy: ±1bpm

NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg～300mmHg
Pulse Rate Range:   30 bpm～250bpm
Measurement Rage: Adult 30 mmHg～255mmHg
                                  Pediatric 30 mmHg～160mmHg
Over-pressure Protection:
                                 Adult 300mmHg
                                 Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.

Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃～50℃
Accuracy: ±0.1℃

Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours

Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity：0～55℃/10～80%RH
Storage Operation/relative humidity：–20～60℃/10～90%RH

Power Supply
AC Power Adaptor
Input: 100～240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A

Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.

Environment
Temperature
Working:0℃～45℃
Transport and Storage: -25℃～85℃
Humidity
Working:30% ～85 %
Transport and Storage: 30% ～95 % (no condensation)

Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g

Monitoring Parameter
Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Standard:

ECG Cable    ................... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
Tempreture probe  ........... 1Pcs
Power Adapter    .............. 1Pcs
Tempreture probe  ........... 1Pcs
USB Cable    .................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal Printer

Product Features

    Portable,compact, easy for carrying and operation
    Clear and bright colour 5.0 Inch TFT-LCD with touch screen and real time display
    Intelligent Measuring of ECG.NIBP.SpO2.PR.PLETH.TEMP
    Storage/Review trend data up to 129.6 hours and 3888 groups
    Storage ECG waveform,each section is 8 seconds, totally is 30 sections; NIBP,SPO2,pulse rate and TEMP data sheet review up to 100 groups; which can be printed via connecting BlueTooth printer
    Utility PC software package for long time monitoring,history data  uploading/review/printing/storage.
    Uploading history data to PC for reviewing, storage or printing via connecting USB data line or BlueTooth wireless
    Audio and visual alarm
    Built-in rechargeable Li-ion battery, up to 15-hour power supply
    Back light can be adjusted freely
    To fulfill Communication function,please install the data viewer software in a PC equipped with a printer, and connect the monitor with the PC by an USB cable or BlueTooth wireless.



    Options:
    Bluetooth Thermal printer
    Bluetooth Printer

Product Specifications

    ECG
    Input：3 /5Lead ECG cable standard AAMI cable connector
    Lead Selection：I, II, III
    Gain Selection：×1, ×2, ×4, ×8
    Sweep Speed: 12.5 25 and 50 mm/s
    Frequency Response: None filter: 0.05～100Hz (-3dB)
                                                  filter: 0.5～40Hz (-3dB)
    Calibration Signal: 1mV square wave
    Protection: Against electrosurgical interference and defibrillation

    Heart Rate
    Measuring Range: 20 bpm～300 bpm
    Renew Time: 1 time per beat
    Accuracy: ±1 bpm
    Alarm Mode: Audible and visual alarm

    SpO2
    SpO2%
    Measuring Range:0%～100%
    Resolution:1 %
    Accuracy:±2 %(90%～99%)
                    ±3 %(70%～89%)unspecified (0%～69%)
    Pulse Rate
    Measuring and Alarm Range:20～300bpm
    Resolution: 1bpm
    Accuracy: ±1bpm

    NIBP
    Method: Oscillometric
    Mode: Manual Auto STAT
    Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
    Measuring Period in STAT Mode: 5 min
    Cuff Pressure Range:0 mmHg～300mmHg
    Pulse Rate Range:   30 bpm～250bpm
    Measurement Rage: Adult 30 mmHg～255mmHg
                                      Pediatric 30 mmHg～160mmHg
    Over-pressure Protection:
                                     Adult 300mmHg
                                     Pediatric 220mmHg
    Pressure Resolution : 1mmHg
    The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
    The MEAN value measured using this device is equal to that measured using blood pressure measurement device.

    Temperature
    Input: Body surface thermal-sensitive resistor temperature sensor
    Measuring Range: 0℃～50℃
    Accuracy: ±0.1℃

    Storage and Review
    Maximum Data Quantity: 3888 groups
    Maximum Trend Time: Continuous 129.6 hours

    Power :
    Rechargeable battery 1700mAh~2000mAh.7.2V.
    Charge(discharge) ≧1000times.
    Charge time: 2hours
    Work Operation/relative humidity：0～55℃/10～80%RH
    Storage Operation/relative humidity：–20～60℃/10～90%RH

    Power Supply
    AC Power Adaptor
    Input: 100～240VAC 50/60Hz 0.7A
    Output: DC 5V 1.5A

    Battery
    Li-ion rechargeable battery 3.7V/7200mAH
    Operating Time: 15 hours with full battery capacity.
    (Condition: 25℃ NIBP working period is 15 minutes)
    Recharge Time: 10 hours.

    Environment
    Temperature
    Working:0℃～45℃
    Transport and Storage: -25℃～85℃
    Humidity
    Working:30% ～85 %
    Transport and Storage: 30% ～95 % (no condensation)

    Display Specification
    Measurement Display: color TFT- LCD/touch screen
    Power Supply Indicator: Dual-color LED (red/green)
    Charging indicator: A green LED
    Size: 209mm×104mm×47.5mm
    Net Weight: 655g

    Monitoring Parameter
    Printer (optional)
    Type: Thermal micro-printer
    Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
    Interface: Bluetooth wireless interface
    Recording Types: Real-time printing and review data printing
