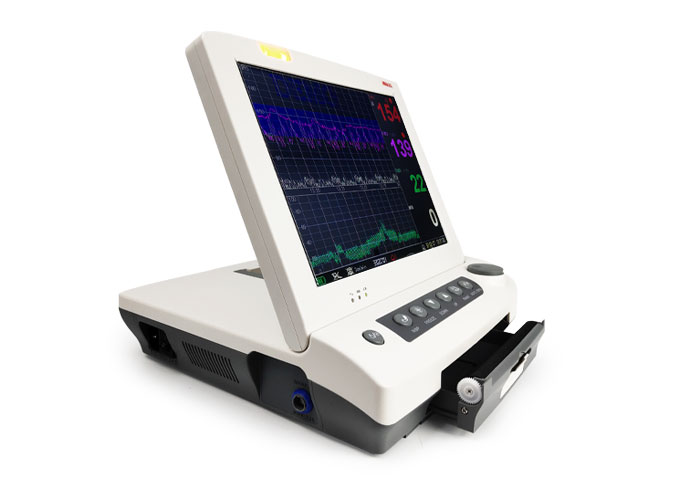

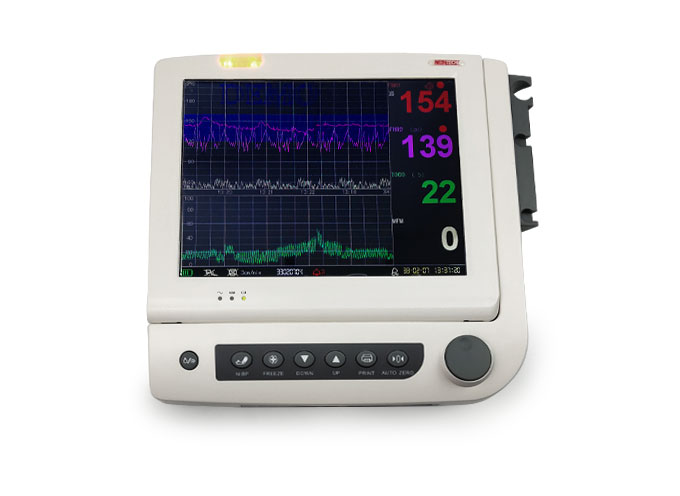

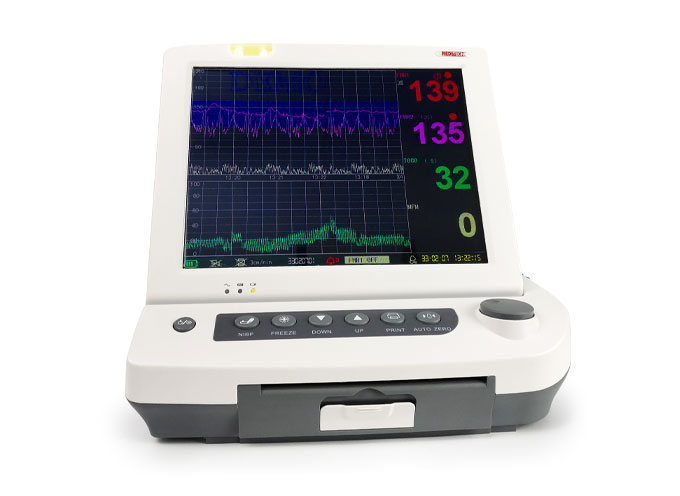

12.1 "screen color LCD display, rotatable screen to 75°
Display of the patient data and curve clearly
FHR 120 BPM~160 BPM normal range label
Manual records fetal movement
Sound and color alarm for high and low fetal heart rate
Continuous 24-hour real-time monitoring function
Continuous 12-hour patient curve and data storage , playback and print
With picture freeze function
Single, Twins Monitoring optional
9 crystal board band pulsed wave transducer
Extra-long life, high-resolution built-in thermal recorder

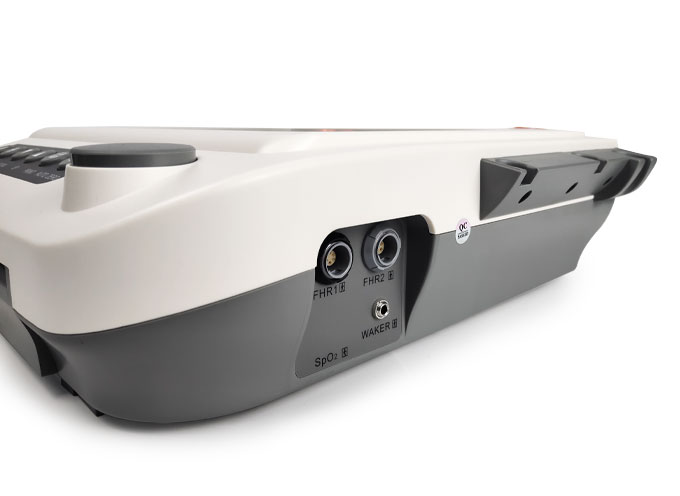

Built-in communication port, can be connected with central monitoring system.
Options:
Multiparameter Patient Monitor Module
(ECG, SpO2, RESP, PR, NIBP).
Display
Dimensions: 12.1 inch display, folding 75 degree
Content:
Bed No..............................................
Pregnancy weeks..............................
Age....................................................
Paper speed......................................
Date...................................................
Time...................................................
Volume...............................................
Alarm status.......................................
Transducer connection status............
Recorder status..................................
FHR data and wave..........................
Contraction data and wave...............
Fetal move times and mark...............
Ultrasound probe:
Nominal Frequency: 1.0 MHz
Work Frequency: 1.0 MHz±10 %
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time space peak intensity: Ispta<100 mW/cm2
The average time space peak intensity: Isata<10 mW/cm2
FHR Rang: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy : ±2 BPM
FHR
Ultrasound Frequency: 2MHz
Range: 50 ~ 210 bpm
Resolution: 1bmp
Accuracy: ±2bmp
TOCO
Range: 0 ~ 100%
Resolution: 1%
Non-linear Error: <=±8%
Zero control: Manual
FETAL MOVEMENT:
For the manual button (the operation of pregnant women), there will be a mark display in the bottom area of FHR wave display section.
SPO2 (Options)
Measurement Range: 0 ~ 100%
Resolution: 1%
Accuracy: ±2%(70%~100%, Adult/Pediatric, non-motion)
±3%(70%~100%, Neonate, non-motion)0% ~ 69% unspecified
Alarm Range: 0% ~ 100%
Refreshing Rate: 1s
Pulse Rate (Options)
Measurement Range: 25 ~ 250 bpm
Resolution: 1bpm
Accuracy: ±3 bpm (non-motion)
Alarm Range: 25 ~ 250 bmp
Refreshing Rate: 1s
ECG (Options)
Lead mode: 3-lead or 5-lead
Lead selection: I, II, III, AVR, AVL, AVF, V
HR range: 15 ~ 300 bpm
ECG Waveform: 2 channels
Accuracy: ±2bpm or ±2%, which is greater
S-T segment detection range: -2.0mv ~ +2.0mv
Arrhythmia analysis: 13 kinds of arrhythmia
Alarm Range: 15 ~ 300 bpm
NIBP (Options)
Method: Oscillometry
Mode: Manual/Auto/Continuous
Measurement Range: 25 ~ 260mmHg
Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
Resolution: 1mmHg
Overpressure Protection: 300mmHg
Alarm range: 25 ~260mmHg
Print:
Record Paper two-double type Z
Print Width: 112 mm
Valid Print Width: 104 mm
Paper output speed: 1 cm/min、2 cm/min、3 cm/min(optional)
Data Precision: ±5 %(X Roll),±1 %(Y Roll)
Record Content: hospital , bed No. ,name, pregnancy weeks, patient No., paper speed, date, time , FHR data and wave, Contraction data and wave, Fetal move times and mark etc.
Safety :
Anti-shock types: Facilities I, no internal power supply
Anti-electric Shock Degree: B
Working Voltage: AC 100 V~240 V
Frequency: 50 Hz/60 Hz P<60 VA
Fuse: T1.6AL250VDisplay
Options:
Ultrasound Transducer
Physical Characteristics
Size: 320 mm (length) × 260 mm (width) × 80 mm (height)
Weight: about 3 kg
Standard:
Ultrasonic Transducer ..... 1Pcs
TOCO Transducer .......... 1Pcs
Switch Remote ............... 1Pcs
Abdomen belt ................. 1Pcs
Z Thermal Paper ......... 1Pcs
Ground Cable ................ 1Pcs
Ground Cable ................ 1Pcs
Fuse ............................... 2Pcs
Cleaning Cloth ................ 1Pcs
Options:
ECG Cable (3 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult)
SpO2 Cable (New born)
SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (multi-site Y type)
SpO2 probe (Soft tip)
SpO2 External Cable
NIBP Cuff (infant 8 - 14 cm 5/Bag)
NIBP Cuff (Child 13 - 20 cm 5/Bag)
NIBP Cuff (Small Adult 18 - 26 cm 5/Bag)
NIBP Cuff (Adult 26 - 35 cm 5/Bag)
NIBP Cuff (Adult Long 29 - 38 cm 5/Bag)
NIBP Cuff (Large Adult 32 - 42 cm 5/Bag)
NIBP Cuff (Large Adult Long 35 - 44 cm 5/Bag)
NIBP Cuff (Thigh 42 - 50 cm)
NIBP Tube 150cm
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
