Product Features

12-Lead Simultaneous ECG
Automatic Measurement and Interpretation
Pacemaker Analysis
Multi-Form Printing
One Key Operation
VCG and VLP
Isolated USB

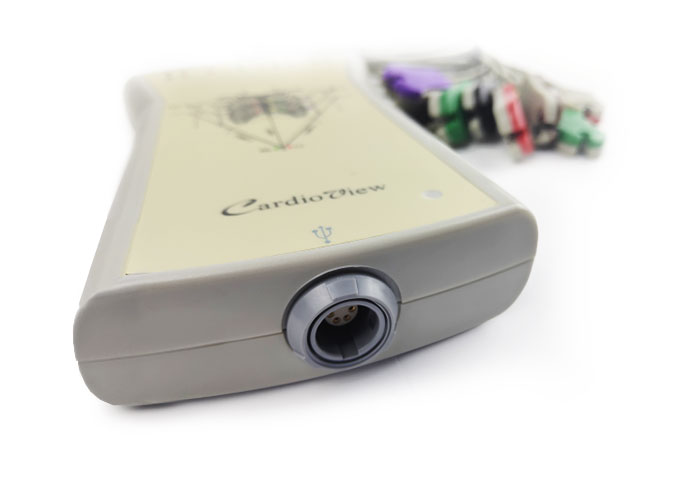

PC Interface: USB Connector

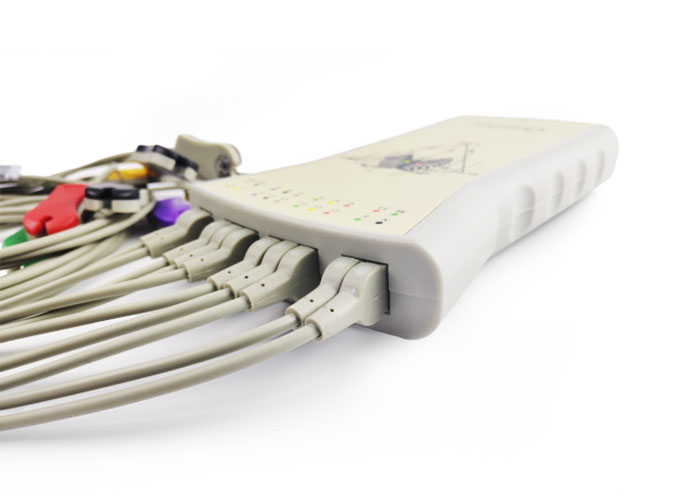

Patient Cable: 10 wires independent  ( easy to remove) NEW

Recording
Speeding: 12.5mm/s 25mm/s 50mm/s
Sensitivity: 10mm/mV 5mm/mV 20mm/mV
Channel: 8

Heart rate indication
Display range 30 to 300 bpm
Display update with every heart beat maximum every 2 seconds.

Data interface
One USB interface for exchange of data with suitable external devices and software
USB interface:
output voltage range: 5V

baseline
Automatic adjustment of the baseline to the optimal recording range in dependence of the signal amplitude.

Meditech PC ECG anti defibrillation & high-frequency protected



Product Specifications

Sampling Rate:  A/D:          24K SPS/Channel
Recording:                         1000 SPS/Channel
Quantization Precision:       A/D: 24 Bits
Recording:                          16 Bits
Resolution:                         0.4μV
Frequency Response:        0.05-250Hz (±3dB)
Common Mode Rejection:  >90dB
Input Impedance:               >10MΩ
Time Constant:                   ≥3.2Sec.
Maximum Electrode Potential: ±300mV DC
Dynamic Range:                 ±12mV
Isolate Voltage:                   4000V
Patent Multi-Channel Synchronous A/D
Defibrillation Protect:           Built-in box
Patient Current Leek:          <10μA

Related Accessories

Standard:

Chest Electrode        ............ 6Pcs
Clamp Electrode     .............. 4Pcs
Cleaning Cloth   ................... 1Pcs

Options:

PC(Computer) accessories
Trolley
Printer accessories
