HeartRec® Eco
HeartRec® Eco contains recorder & analysis software. Recorder is an easy- to -use unit,which collects 12-lead ECG waveform synchronously and records continuously for 48 hours.

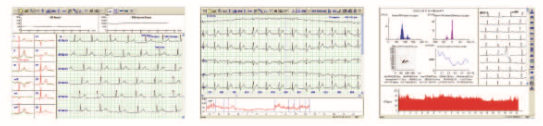

With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA
With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA
HeartRec® Eco contains recorder & analysis software. Recorder is an easy- to -use unit,which collects 12-lead ECG waveform synchronously and records continuously for 48 hours.
With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA
Read More With the clear operating interface, analysis software is easy for you to use, which can play back and classifying dispose ECG waveform stored in recorder and achieve kinds of analysis functions, such as arrhythmia, HRV, QTD, TWA

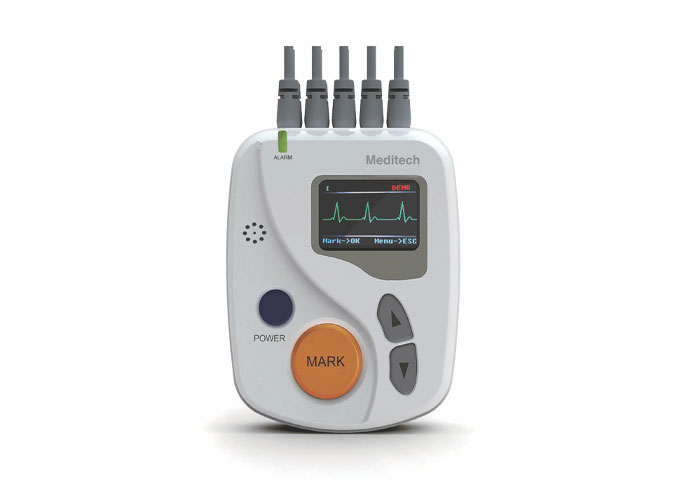

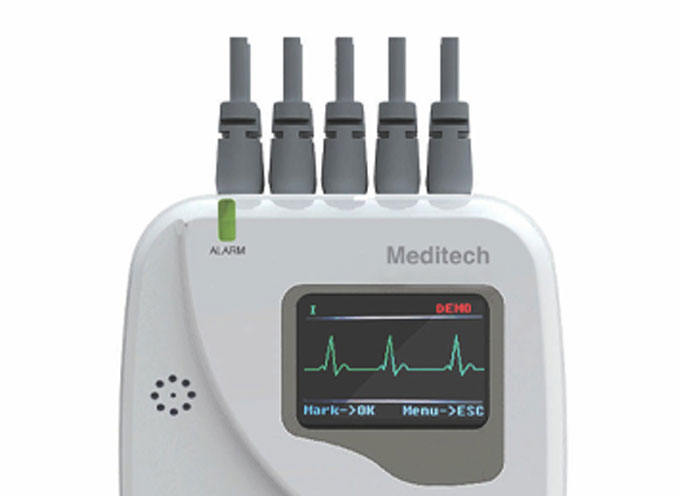

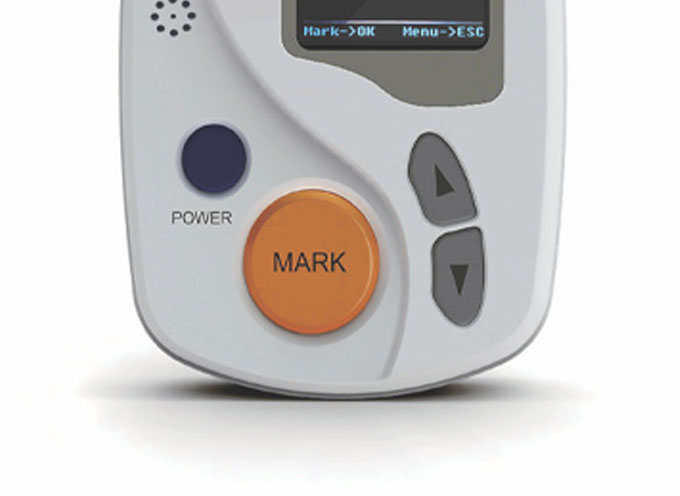

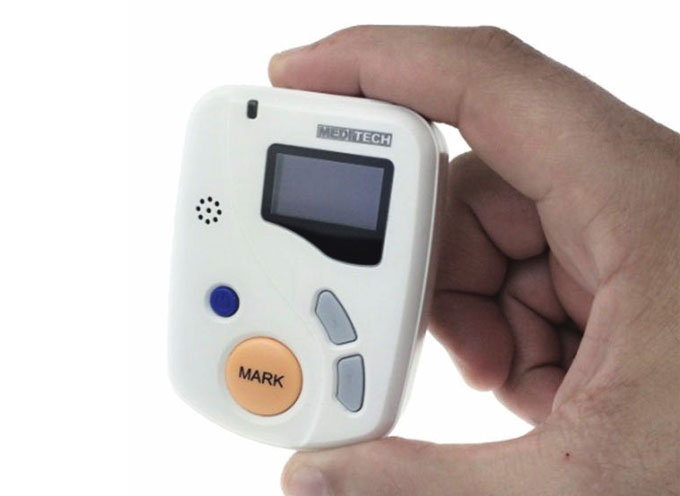

ECG Holter Compact design and small size with OLED display
With 12 leads synchro analysis QRS search can be more exactly
Automatic Duplex Operation: 12 Channel (10-wire cable), 3 Channel (5-wire or 7-wire selectable )
Automatic Duplex Operation: 12 Channel (10-wire cable), 3 Channel (5-wire or 7-wire selectable )
There are more than 10 templates as atrial premature beat module ventricular premature beat module:
Long interval module Atrial flutter module
Atrial fibrillation module etc.and multiplicative User-defined templates could almost identify every kind of pathological wave forms
Flexible atrial fibrillation analysis so that physicians can use full segmented automatic manual analysis of atrial fibrillation make the analysis more quickly and accurately
Powerful pacemaker analysis on the AAI VVI DDD etc. all pacemaker analysis
Analysis of heart rate variability with short-range 5 minutes and long-range 1 hour and full analysis of heart rate variability
Analysis can predict the risk of death in patients with myocardial infarction "Heart rate turbulence"
Analysis is a important index on judging and preventing Arrhythmia "T Wave alternation"
The report has more reference value with the functions of VCG VLP TVCG and QTD analysis.
Recorder features
Removable TF card(volume: up to 2GB).
Work on "AAA" size battery and workable for 60 hours.
Separated electrodes synchronously collect the 12-lead ECG data (easy for replacement).
Scale voltage: 1mV±5%
Standard Sensitivity: 10mm/mV±5%
Noise level: ≤30μV p-p
CMRR: ≥60dB
Frequency response: 10Hz as benchmark 0.5Hz～55Hz;-3dB
Time constant: Time constant≥3.2s
Scan speed: 25mm/s±5%
Enduring polarization voltage: add ±300mV DC polarization voltage the sensitivity shift is no more than ± 10%
Least measure signal: 50 μV p-p
Interfere between channels: scan track deflexion (result from interfere between channels) ≤0.5mm
12-lead isochronous ECG sample
Product safety type: Type B (Internally powered)
Size: 80.5mm (L) *59.5mm (W) *22mm (H)
Net Weight: 61.5g (Without battery)
Relative Humidity: ≤85% no condensation.
Atmospheric pressure : 860hPa-1060hPa
Power Supply: DC 1.5V
No extreme temperature and humidity.
Relative Humidity: ≤85%
Atmospheric pressure: 860hPa-1060hPa
Standard Sensitivity: 10mm/mV±5%
Noise level: ≤30μV p-p
CMRR: ≥60dB
Frequency response: 10Hz as benchmark 0.5Hz～55Hz;-3dB
Time constant: Time constant≥3.2s
Scan speed: 25mm/s±5%
Enduring polarization voltage: add ±300mV DC polarization voltage the sensitivity shift is no more than ± 10%
Least measure signal: 50 μV p-p
Interfere between channels: scan track deflexion (result from interfere between channels) ≤0.5mm
12-lead isochronous ECG sample
Product safety type: Type B (Internally powered)
Size: 80.5mm (L) *59.5mm (W) *22mm (H)
Net Weight: 61.5g (Without battery)
Environment Condition and Applicable People
The environment requirement of operation transport and storage for this System.Operation Environment
Environment Temperature: 10℃~45℃Relative Humidity: ≤85% no condensation.
Atmospheric pressure : 860hPa-1060hPa
Power Supply: DC 1.5V
1Application Environment:
No vibration dust corrosive or combustible matter.No extreme temperature and humidity.
Transport and Storage Environment
Environment Temperature: -40℃~+55℃Relative Humidity: ≤85%
Atmospheric pressure: 860hPa-1060hPa
Product Features
ECG Holter Compact design and small size with OLED display
With 12 leads synchro analysis QRS search can be more exactly
Automatic Duplex Operation: 12 Channel (10-wire cable), 3 Channel (5-wire or 7-wire selectable )
Automatic Duplex Operation: 12 Channel (10-wire cable), 3 Channel (5-wire or 7-wire selectable )
There are more than 10 templates as atrial premature beat module ventricular premature beat module:
Long interval module Atrial flutter module
Atrial fibrillation module etc.and multiplicative User-defined templates could almost identify every kind of pathological wave forms
Flexible atrial fibrillation analysis so that physicians can use full segmented automatic manual analysis of atrial fibrillation make the analysis more quickly and accurately
Powerful pacemaker analysis on the AAI VVI DDD etc. all pacemaker analysis
Analysis of heart rate variability with short-range 5 minutes and long-range 1 hour and full analysis of heart rate variability
Analysis can predict the risk of death in patients with myocardial infarction "Heart rate turbulence"
Analysis is a important index on judging and preventing Arrhythmia "T Wave alternation"
The report has more reference value with the functions of VCG VLP TVCG and QTD analysis.
Recorder features
Removable TF card(volume: up to 2GB).
Work on "AAA" size battery and workable for 60 hours.
Separated electrodes synchronously collect the 12-lead ECG data (easy for replacement).
