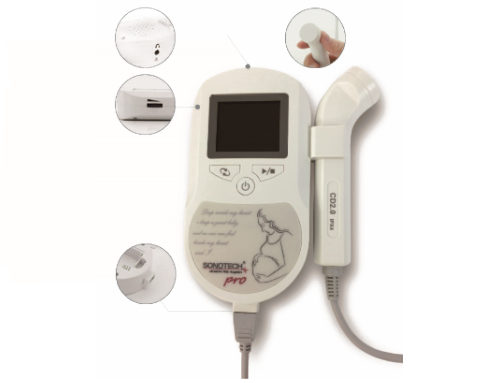

Standalone 2MHz Water Resistant (IPX4) Probe
FHR Display: Bar Graph | Histogram | Waveform
Working Diagnostics: Realtime, Average, & Manual
Out of Range Fetal Heart Rate Alarm Display
Backlit LCD Battery Status Indicator Display
+8 Hrs Operation on 2 AA Alkaline Batteries

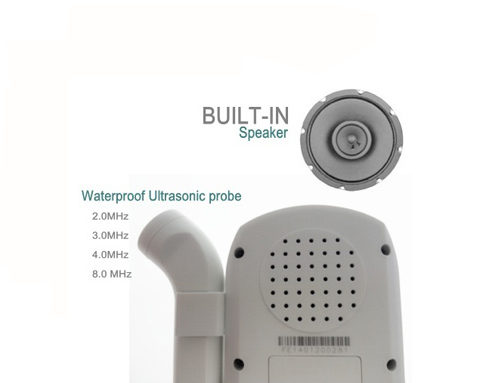

Built In Speaker (=1.8W) with Volume Control
Audio Out Provisions: Headphones, PC Recording
Auto Power Off on No Signal (8 seconds) Function
FHR Measuring Diagnostic Range: 50~240BPM
Diagnostics Accuracy: } +/-2 Beats per Minute
Working Ultrasonic Frequency: 2.0MHz} 10%
Ultrasonic Opt Intensity: Isata < 5 mW/cm2
Ultrasonic Working Mode: Cont Wave Doppler
Available in two Colours- Blue and Pink

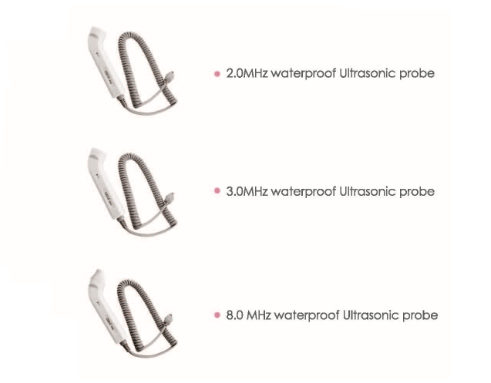

Ultrasonic pocket probes types:
2.0 MHz waterproof Ultrasonic probe
3.0 MHz waterproof Ultrasonic probe
4.0 MHz waterproof Ultrasonic probe
8.0 MHz waterproof Ultrasonic probe
Display: 45mm×25mm LCD display
FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).
Probe:
Nominal Frequency: 2.0MHz, 3Mhz, 4Mhz, 8Mhz
Working Frequency: 2.0MHz±10%
P-: <0.5MPa
Iob: <10 mW/cm2
Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power: P<10 mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature: +5℃～+40℃
Humidity: ≤80％
Atmospheric Pressure: 70 kPa～l06kPa
Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa
FHR Performance
FHR Measuring Range: 50~240BPM (BPM: beat per minute)
Resolution: 1BPM
Accuracy: ±2BPM
Power consumption:<0.8W
Auto Shut-OFF: After 1 minute no signal, power off automatically.
Battery Type Recommended: Two pieces of 1.5 V DC battery (SIZE AA LR6).
Probe:
Nominal Frequency: 2.0MHz, 3Mhz, 4Mhz, 8Mhz
Working Frequency: 2.0MHz±10%
P-: <0.5MPa
Iob: <10 mW/cm2
Ispta: <50mW/cm2
Ultrasonic Output Intensity: Isata<5 mW/cm2
Ultrasonic Output Power: P<10 mW
Working Mode: Continuous wave Doppler
Effective Radiating Area of Transducer: 157mm2±15%
Temperature: +5℃～+40℃
Humidity: ≤80％
Atmospheric Pressure: 70 kPa～l06kPa
Transport and Storage:
Temperature: -10℃～+55℃
Humidity: ≤93％
Atmospheric Pressure: 50 kPa～l06kPa
Standard:
2.0 MHz Ultrasonic probe ......... 1Pcs
AA Battery ............................... 2PcsCleaning Cloth .......................... 1Pcs
Options:
3.0 MHz waterproof Ultrasonic probe
4.0 MHz waterproof Ultrasonic probe
8.0 MHz waterproof Ultrasonic probe
Carry Case
Product Features
Standalone 2MHz Water Resistant (IPX4) Probe
FHR Display: Bar Graph | Histogram | Waveform
Working Diagnostics: Realtime, Average, & Manual
Out of Range Fetal Heart Rate Alarm Display
Backlit LCD Battery Status Indicator Display
+8 Hrs Operation on 2 AA Alkaline Batteries
Built In Speaker (=1.8W) with Volume Control
Audio Out Provisions: Headphones, PC Recording
Auto Power Off on No Signal (8 seconds) Function
FHR Measuring Diagnostic Range: 50~240BPM
Diagnostics Accuracy: } +/-2 Beats per Minute
Working Ultrasonic Frequency: 2.0MHz} 10%
Ultrasonic Opt Intensity: Isata < 5 mW/cm2
Ultrasonic Working Mode: Cont Wave Doppler
Available in two Colours- Blue and Pink
Ultrasonic pocket probes types:
2.0 MHz waterproof Ultrasonic probe
3.0 MHz waterproof Ultrasonic probe
4.0 MHz waterproof Ultrasonic probe
8.0 MHz waterproof Ultrasonic probe
Product Specifications
