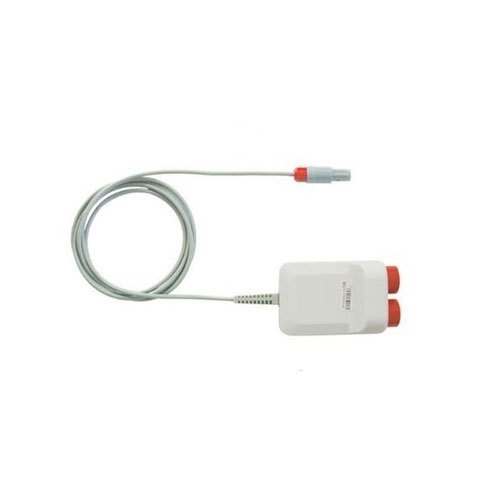

External IBP, uses PLUG & PLAY IBP TECHNOLOGY
Dual-channel measurement.
Low-power, no extra power supply is needed
Automatic digital data processing
Repeatedly zeroing, calibration function
Using for monitor:
ART: Arterial pressure pressure
PAP: pulmonary artery pressure
CVP: Central venous pressure
RAP: Left atrial pressure
LAP: Right atrial pressure
ICP: Intracranial pressure
P1-P2: Expansion of the pressure
| Main Board Dimension | 53.1 x 40.6 x 20mm |
| Probe Board Dimension | 45.2 x 20.6 x 10mm |
| Number of Channels | Dual Channel |
| Pressure Name | ART, PAP, CVP, RAP, LAP, ICP, P1, P2 |
|
Range of measurement And alarm |
ART 0 - 300 (mmHg) PA -6 - 120 (mmHg) CVP/RAP/LAP/ICP -10 - 40 (mmHg) P1/P2 -10 - 300 (mmHg) |
| Zero-time | Every time upon measurement |
| Calibration | Regularly or when new sensor is used |
| Pressure Sensor | |
| Sensitivity | 5µV/V/mmHg |
| Impedance range | 300 - 3000 (Ohm) |
| Resolution | 1 (mmHg) |
| Accuracy | ±2% or ±1mmHg, whichever is bigger |
| Update Time | About 1 second |
Product Features
External IBP, uses PLUG & PLAY IBP TECHNOLOGY
Dual-channel measurement.
Low-power, no extra power supply is needed
Automatic digital data processing
Repeatedly zeroing, calibration function
Using for monitor:
ART: Arterial pressure pressure
PAP: pulmonary artery pressure
CVP: Central venous pressure
RAP: Left atrial pressure
LAP: Right atrial pressure
ICP: Intracranial pressure
P1-P2: Expansion of the pressure
Product Specifications
