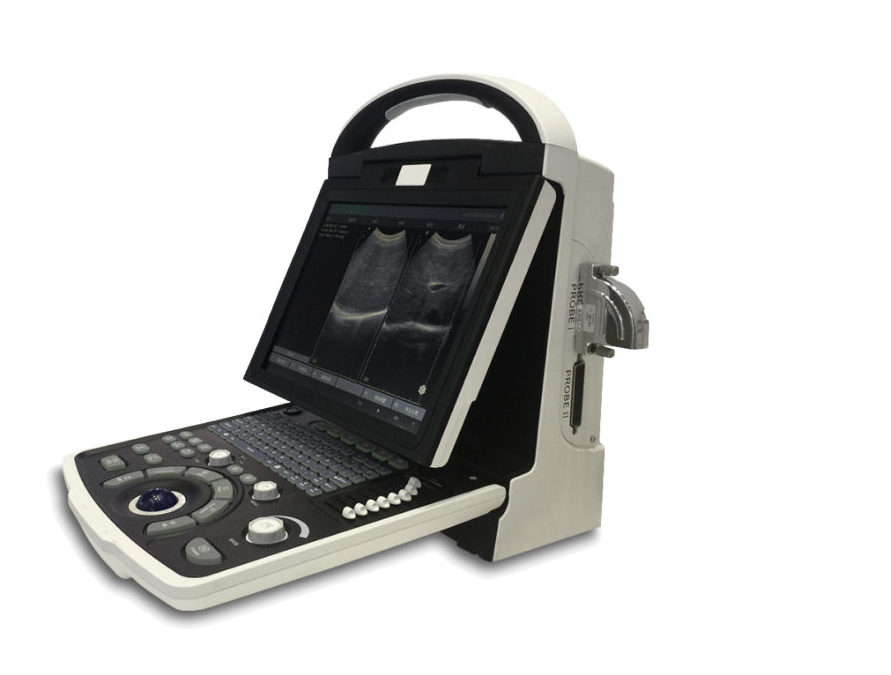

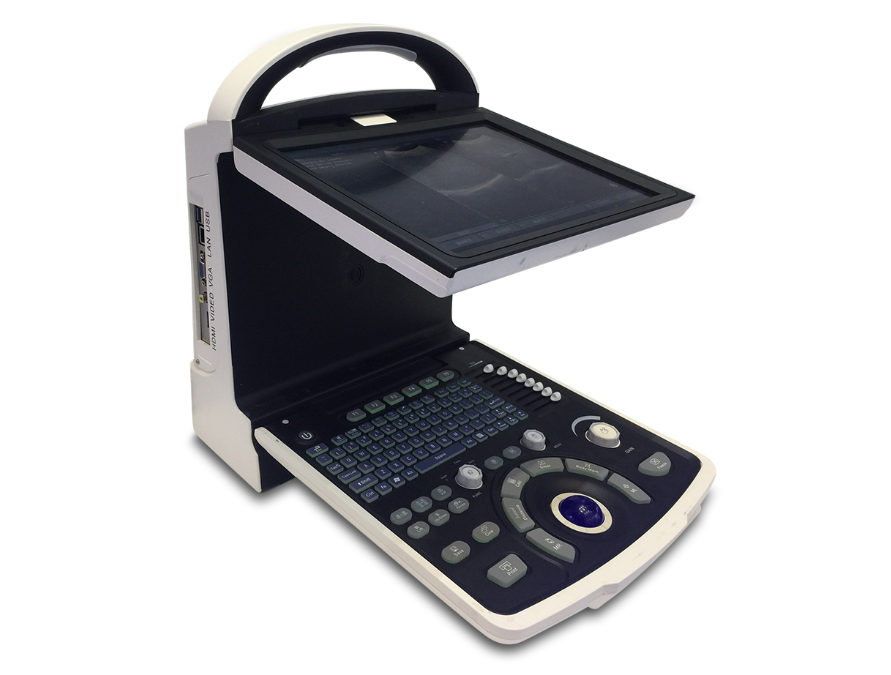

Product Features

Full digital imaging technology
Crystal-clear Image
Computer platforms, Abundant functions
Powerful image and report management
10 inch no interlaced CRT monitor
Silica gel backlight keyboard
DICOM display and transfer

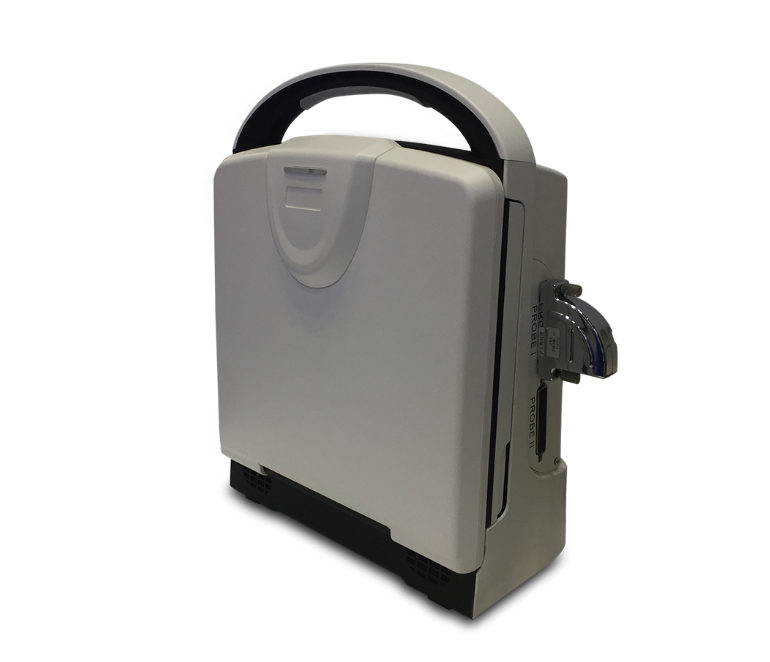

Pretty, portable and light
Large volume Storage and cine loop
128/256/512/1024 frame cine loop
Broadband Multi frequency probes
8 segment TGC, 16 step zoom
Complete application software packages
2 probe connector
Compatible with USB laser/inkjet printers
3D Image Function(optional)


• THI
• Imaging technologies
• Intelligent   Speckle Reduction
• 3D reconstruction
• Abundant user management functions
• One key recording
• User defined OB table
• Expert vocabulary   and report  templates

Product Specifications

Displaying mode:      B mode, B/B mode, B/M mode, M mode, 4B mode
Scanning mode:         Electric convex, Electric linear, Electric micro-convex
Displaying depth: 20mm-310mm
Probe  port:               1 OR 2
Voltage:                    AC100V-240V
Output port:              USB,DICOM,VGA,
Gray scale:                256
Time gain:                 Gain：10～255dB adjustable ;time gain compensation(TGC): 8 segments, which can be adjusted independently in B mode and M mode.
Storage function:       image storage, cine loop storage, mass storage capacity≥10G.measurement result storage, report storage
Cine-loop:                  64,128,256,512,1024 frames can be chosen；auto/manual cine loop
Patient information:   Hospital name; patient name; case number； patient age； gender；
Focusing mode:         1-4 selectable focus , multiple combination way, focus position moving available
Real-time zoom, local zoom: Multi-stage display rate(depth ascension)function, roll line function
Annotation function: Annotation at the image area

Annotation of patient information
Body mark: 140
Cursor: The combination of Trackball and keyboard
Color display:          43 color display function
DC-AC: AC/DC
Report: Display, storage and print report directly.
Variable angle scanning: 16kinds of angle scanning include:25%,30%,35%,…100
Image processing: Pre-processing, post-processing,  dynamic range, frame correlation, line correlation, edge enhancement, black/white conversion, left/right conversion, up/down conversion, contrast, brightness, gamma correction
Dynamic range: Continuously adjustable： 20~150dB
Measurement and calculation: B mode: distance, circumstance, area, volume, angle, histogram, hip joint angle
M mode:                    heart rate, time, slope
Abdomen:                  uterus, cervix, endometrial, ovary, ovarian follicle, cyst, enclosed mass
Obstetric:                 14（AC,BPD,CRL,FL,THD,GS,OFD,HUMERUS,TIDIA,ULNA,HC,TAD,APTD,FTA）measure gestation age, fetal weight, AFI
Cardiology:               LV.LV function, LVPW,RVAWT, aorta, mistral valve
Urology:                   L/R kidney volume, bladder volume, prostate volume
Small organs:           Ophthalmology. Thyroid, residual urine volume


Related Accessories

Standard:

Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W Laser printer

Footswitch
Battery
Trolley
Ultrasonic work-station
Carrying Bag
