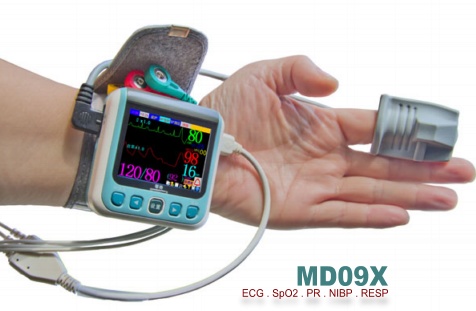

MD09X terminal devices include series products: an inter-graded multi-parameters monitor and individual parameter monitors. The inter-graded multi-parameters monitor with a smart size can simultaneously measure the ECG, Heart rate, Respiration, Blood pressure, SpO2 and Pulse rate. The individual parameter monitor can respectively measure the Blood pressure, Sp02 or the both. All the devices can communicate with other mobile terminals by energy-saving wireless Bluetooth 4.0.
Display Size: 2.4 inch TFT color dis-player.
Resolution: 320*240
Display waveform: 2 channels waveform of ECG, respiration, blood pressure and SpO2 can be both displayed
ECG: With the function of abnormal data store, daily data store and trend display
NIBP: Manual measurement. Automatically identify the adult and child. System can adjust the maximal pressure for adult and child. The
blood pressure waveform can be displayed in real-time
SpO2: Anti-low per-fusion and motion artifact
Trend display: Display the trend of ECG, blood pressure, SpO2, ST segments, premature and respiration in 96 hours
Alarm modes: Visible alarming reminder and speaking voice alarming reminder
Working duration: 8 hours continuing monitoring
Wireless: Bluetooth 4.0
E-Manual: Embedded e-manual for self reading
Size: 7cm*7cm*2.6cm
Weight: 150g
Available usages:
Used for the monitoring and recording of the ECG, Heart rate, Respiration, blood pressure and SpO2. This device is suitable for the general sickroom in the hospital and personal health care.
Can NOT used for intensive care and operation room.
Do NOT equip defibrillator proof function.
Optional :
bluetooth Portable printer
