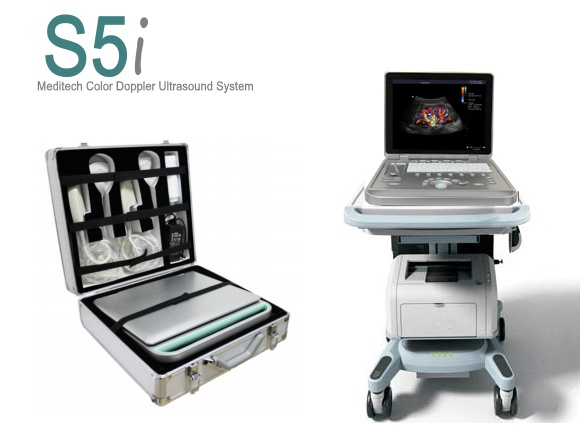

S5i Color Doppler Ultrasound System

S5i Color Doppler Ultrasound System


is a very high cost-effective  device, for it with good image, powerful functions
and also pretty appearance, but price is inexpensive.
It with a large volume hard disk so can store many image and video, and can make a detail report directly
not need connect to computer and make on computer, and can work with general ink or laser printer
so the printer cost is low. We believe you will like it, and it can bring benefits to your work.

Feature:

• CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI
• High definition image
• Very thin, light and pretty
• 15inch LED Screen
• Built-in Battery
• 3D imaging(option)
• Abundant functions, Multilingual
• Hardisk, USB storage

Specifications:

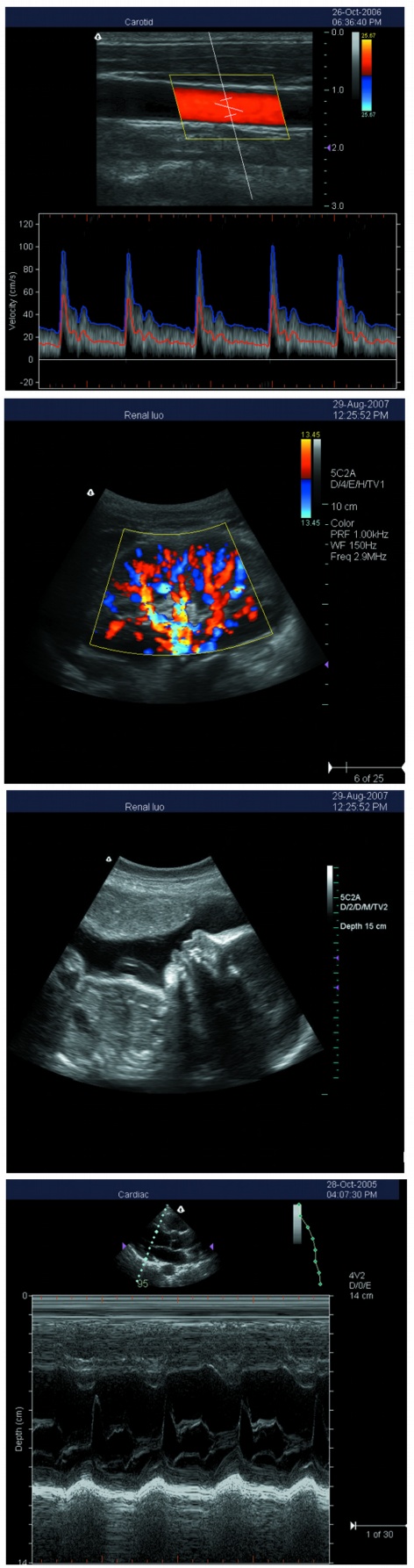

1. Imaging Modes:
B, B|B, 4B, B|M, M
Color Doppler (CFM)
Power Doppler (PDI)
Directional Power Doppler (DPDI)
Pulsed Wave Doppler (PWD)
B+PWD (Duplex)
B+CFM/PDI/DPDI+PWD (Triplex)
High Pulse Repetition Frequency (HPRF)
Tissue Harmonic Imaging (THI)
2. Scanning Method: electronic linear, electronic convex, electronic micro-convex, scanning depth: 2-24cm
3. Color Doppler:
PRF variable: 0.5-9 kHz
wall filter settings: 3 steps (5%, %10%, 15% PRF)
angle steering for linear transducers: ±10°l
real-time spatial filter: 4 values
CFM palette>10 maps
PDI palette
PDI palette>10 maps
B/Color priority control
B/Color priority control
color threshold control
CFM baseline control
Doppler frequency selection
color frame averaging
Transparent Color Mapping (TCM)
4. Pulsed Wave Doppler:
PRF variable: 1-10 kHz
wall filter settings: 16 steps (2.5%-20% PRF)
angle steering for linear transducers: ±10°
real-time trace line with automatic calculation of spectrum parameters
stereo sound: volume control
PWD palette>10 maps
Doppler frequency selection
Doppler frequency selection
5.Processing:
High Line Density scan mode for better resolution
8 sliders TGC Control
dynamic range>120 dB
overall gain control
overall gain control
M - mode sweep speed control
acoustic power control
variable frame averaging
brightness, contrast
advanced gamma control
scan direction, rotation, up-down controlsl
negative / positive controll
echo enhancement controll
noise rejection functionl
speckle reductionl
6. Image and video: AVI, JPG, BMP, PNG, TIF, DCM (DICOM)
7. General Measurements and Calculations: Distance, Length, Area, Circumference, Volume, Angle, Stenosis %, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.
8. Measurements and Calculations Software Packages: Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.
9. Expansion interfaces:
VGA, TV Interface
USB 2.0 Interface
RJ-45 Network interface
Support Desk-jet printer, Laser-jet printer, video printer


Standard Configuration:
Host 1 unit; Convex probe 1 pcs; Linear or Trans-vaginal probe 1 pcs


Optional:
Linear, Trans-vaginal, Micro-convex, Rectal probe; 3D imaging software; Bag; Trolley; Laser Printer; Video Printer
