Digital NIBP module - Meditech OEM

MD-IBP2 NIBP Module

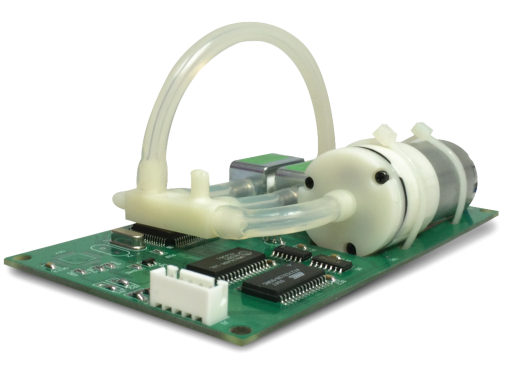

MD-IBP2 Digital NIBP module
Small in size, simple, excellent reliability and ease of installation clinical monitoring of the accuracy;
Excellent reliability and accuracy of clinical monitoring

Meditech NIBP Pump low noise ,low energy consumption,also it environmental,the detail information are as follow: more Details: Air pump fore Blood pressure

Read Less

MD-IBP2 Digital NIBP module
Small in size, simple, excellent reliability and ease of installation clinical monitoring of the accuracy;
Excellent reliability and accuracy of clinical monitoring

Meditech NIBP Pump low noise ,low energy consumption,also it environmental,the detail information are as follow: more Details: Air pump fore Blood pressure

The latest digital signal processing technology to achieve anti-noise and software algorithms anti-interference by moving arm;
Capable of accomplishing all NIBP measurement items;
Comply with EC safety design;
Comply with all NIBP standard of ANSI/AAMI;
Applies to adults, children and Newborn;
5V/12V single power supply to avoid interference with the digital circuit by the pump;
Fully compatible with the protocol of CAS Non-invasive blood pressure module (NIBP)

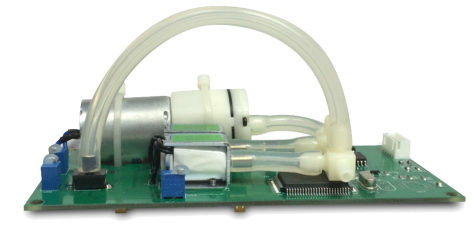

MD-IBP2 is a Small Board

NIBP Pump:

1. folw>1.8L/MIN
2. pressure>500 mmHg
3. life>50000times
4. inflation time<10s in 500CC 5.noise<52dB

Related items

MD-IBP2 NIBP Module

MD-IBP2 Digital blood pressure Small Board "in size" excellent reliability and ease of installation clinical monitoring of the accuracy;Comply with all

Meditech Equipment Co.,Ltd is part of Meditech Group. Product(s) described may not be licensed or available for sale in all countries. Sonotech, Sonovet, iSonic, FOs2pro, Dolphi, Defi, HeartRec,miniScan,Cardios,SpirOx,iBreath, Meditech and all corresponding design marks are trademarks of Meditech. The symbol indicates the trademark is registered. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners. Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions.

Measuring range	Adult: 30 to 255 mmHg systolic blood pressure An average of 20 to 235 mmHg pressure 15 to 220 mmHg diastolic blood pressure Pulse rate of 30 to 240 times / min Newborn: 30 to 135 mmHg systolic blood pressure An average of 20 to 125 mmHg pressure 15 to 110 mmHg diastolic blood pressure Pulse Rate of 40 to 240 times / min
Measurement time	Adults: up to more than 120 seconds; Newborn: up to more than 90 seconds;
Restriction on software over-voltage	Adult: Less than 290mmHg; Newborns: no more than 145mmHg;
Protection on hardware over-voltage	Adult: 300 ±10 mmHg; Newborn: 150 ±4 mmHg;
Measuring principle	Oscillometry
Deflation approach	ladder Deflated
The initial inflation pressure value	Adult: 150 mmHg; Newborn: 70 mmHg;
Sensor zero reset	Prior to each measurement
Resolution	1 mmHg
Measurement accuracy	Maximum average deviation: no more than ± 5 mmHg; maximum standard deviation: less than 8 mmHg;
Pressure accuracy instructions	± 3 mmHg
Leakage	less than 6 mmHg Per minute;
Electrical performance	Voltage: 12 VDC (adapt to the corresponding valve), 5 VDC Quiescent current: 80 mA Measurement current: 200 mA inflated current: 600mA
Environment	Operating Temperature: 0 to 55 Celsius degrees Storage Temperature: -20 to 65 Celsius degrees Humidity Range: 0 to 95%, non-condenser Operation Altitude: -500 m to 4600 meters Life Span: can operate 100,000 blood pressure measurements
Size	12.6 cm x 6.8 cm x 2.8 cm
Weight:	180 g
